FSP350-60APN 85+

ATX 12V v2.3
Chassis Form factor
-
Mainboard Formfactor
-
USB Frontports
-
Audio Front Ports
-
Power Supply
-
Product Dimensions
-

Zur Erstellung einer Wunschliste bitte einloggen.

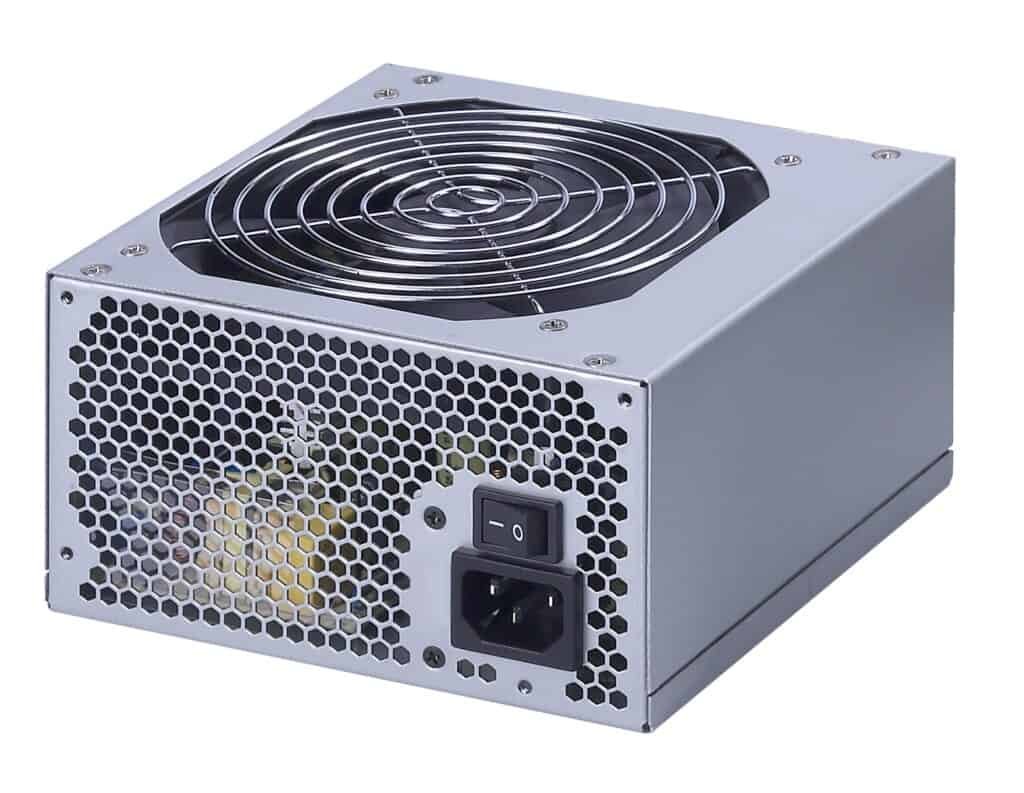

This ATX / PS2 power supply unit (PSU) has a real power rating of 350W (continuous). The eco-friendly design allows APN 85+ series to reach up to 85% efficiency. APN series also protects your PC by providing complete protection (OCP, OVP and SCP). APN series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of users looking for entry-level power or the budget-minded system builder. The efficiency of this power supply meets the 80 PLUS® Bronze requirements at 230V input. However, as EPRI only test power supplies at 115V input; this PSU cannot be certified by 80 PLUS® (as implemented by ECOVA). This also meets the Energy Star Version 5.0 Power Supply and Power Management Requirements for Computers: Effective July 1st, 2009.

Dieser Artikel ist in diesen
Kategorien gelistet:

Detail-Informationen_

PSU Dimensions

140 x 150 x 86 mm

Colour

Black

PFC

active

PSU Rating

n/a

Efficiency

85.74%

MOC +12V1

16A

MOC +12V2

16A

MoC +5V

15A

MOC +3.3V

21A

MOC -12V

0.3A

MOC 5VSB

2.5A

MOC MAX1

103W

MOC MAX2

300W

MOC MAX3

350W

Con Mainpower

20+4pin

Con 4pin 12V CPU

1

Con 4pin FDD

1

Detailinformationen

2009., OVP and SCP). APN series does the job efficiently and reliably

PSU Output

350W

PSU Form Factor

ATX / PS2

AC Input

115-230V, 180-264V

Cooling Fan

120 mm
