FSP350-60GHN 85+
ATX 12V v2.3
Chassis Form factor
-
Mainboard Formfactor
-
USB Frontports
-
Audio Front Ports
-
Power Supply
-
Product Dimensions
-
Zur Erstellung einer Wunschliste bitte einloggen.

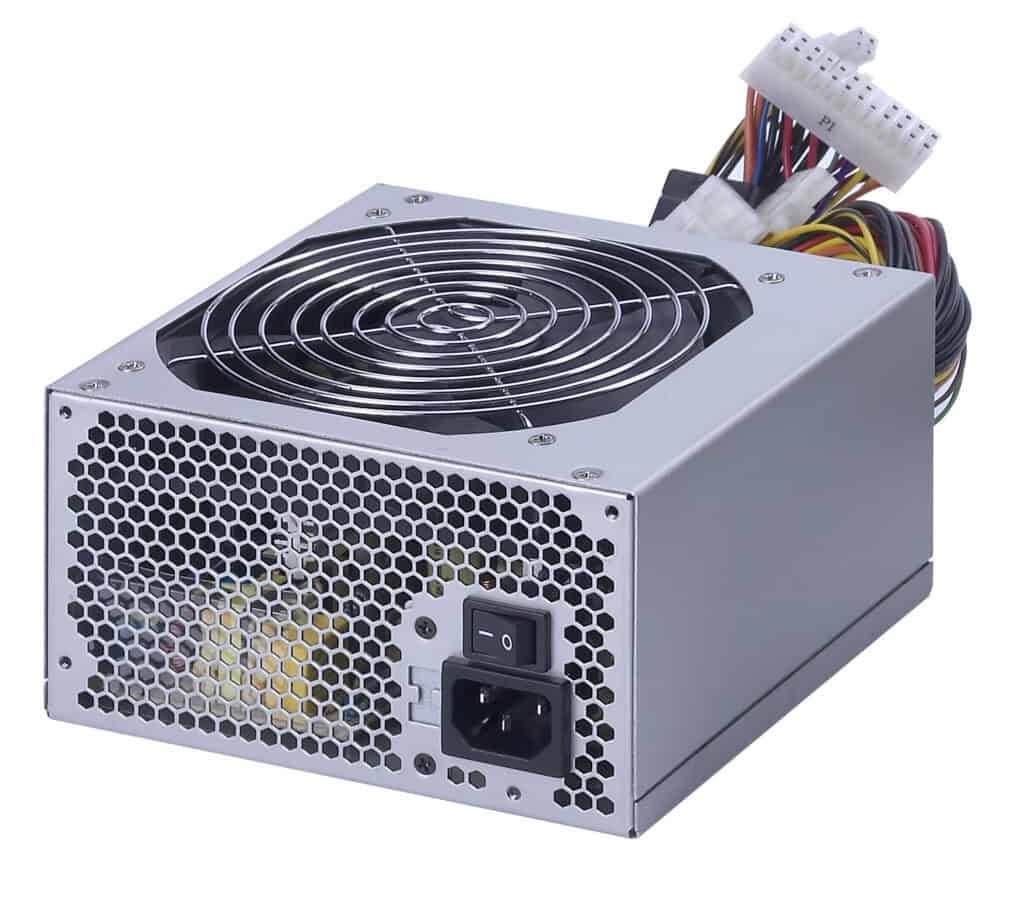

This ATX / PS2 power supply unit (PSU) has a real power rating of 350W (continuous). The eco-friendly design allows GHN series to reach up to 86% efficiency. GHN series also protects your PC by providing complete protection (OVP/UVP, OCP, OPP and SCP). GHN series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of users looking for high efficiency and energy conscious system builders. The 80 PLUS® Bronze requirement also meets the Energy Star Version 5.0 Power Supply and Power Management Requirements for Computers: Effective July 1st, 2009.
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| PSU Dimensions | 140 x 150 x 86 mm |
|---|---|
| Colour | Silver |
| PFC | active |
| PSU Rating | 80 Plus Bronze |
| Efficiency | 85.00% |
| MOC +12V1 | 15A |
| MOC +12V2 | 15A |
| MoC +5V | 20A |
| MOC +3.3V | 21A |
| MOC -12V | 0.5A |
| MOC 5VSB | 2.5A |
| MOC MAX3 | 350W |
| Con Mainpower | 20+4pin |
| Con 4pin 12V CPU | 1 |
| Con 4pin FDD | 1 |
| Con Power Peripheral | 2 |
| Con Power SATA | 3 |
| Detailinformationen | 2009., OCP, OPP and SCP). GHN series does the job efficiently and reliably |
| PSU Output | 350W |
| PSU Form Factor | ATX / PS2 |
| AC Input | 115-230V |
| Cooling Fan | 120 mm |
