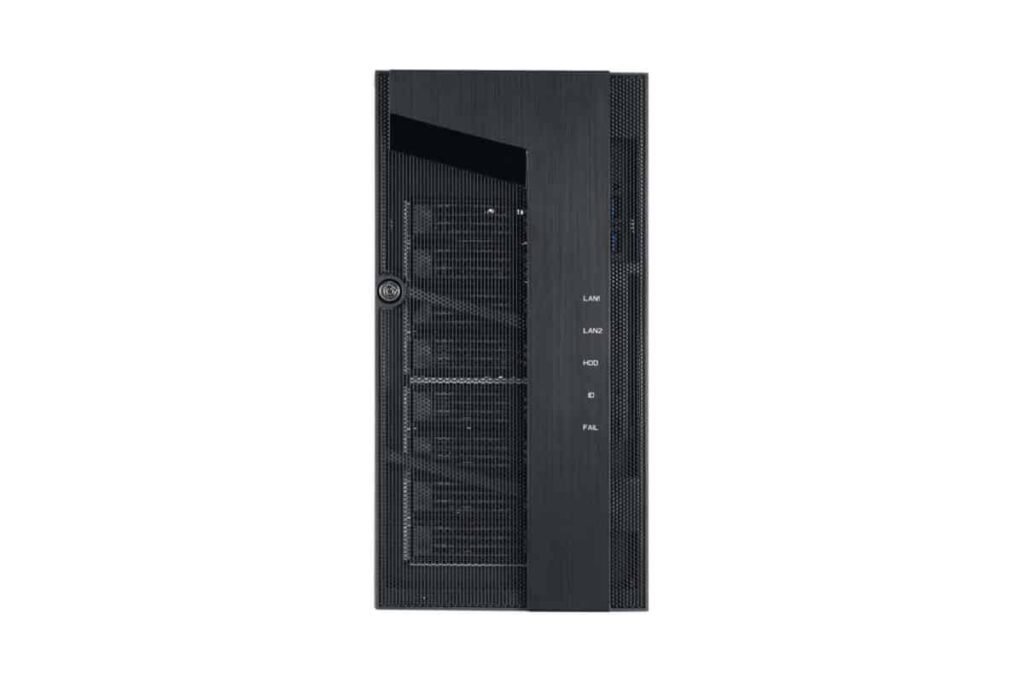

IW-MS08
SOHO SMB
SOHO SMB
2.5" x 2 or 3.5" x 1 (require to remove 2.5" HDD x 2)
2
HDD LED ID LED LAN1/LAN2 LED Power LED system LED
Full-height PCIe slots x 4
630 x 450 x 310mm
20': 168pcs 40' HQ: 400pcs 40': 350pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
- Supports NVMe/SAS/SATA III HDD

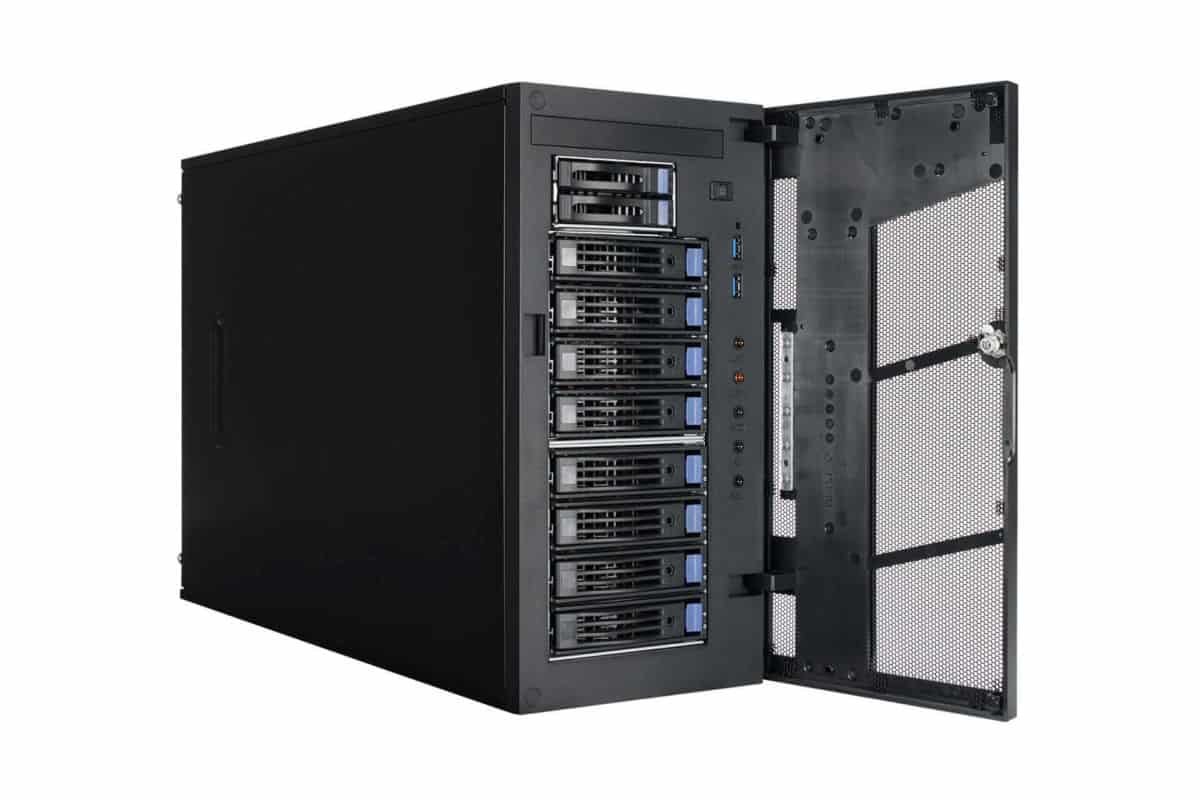

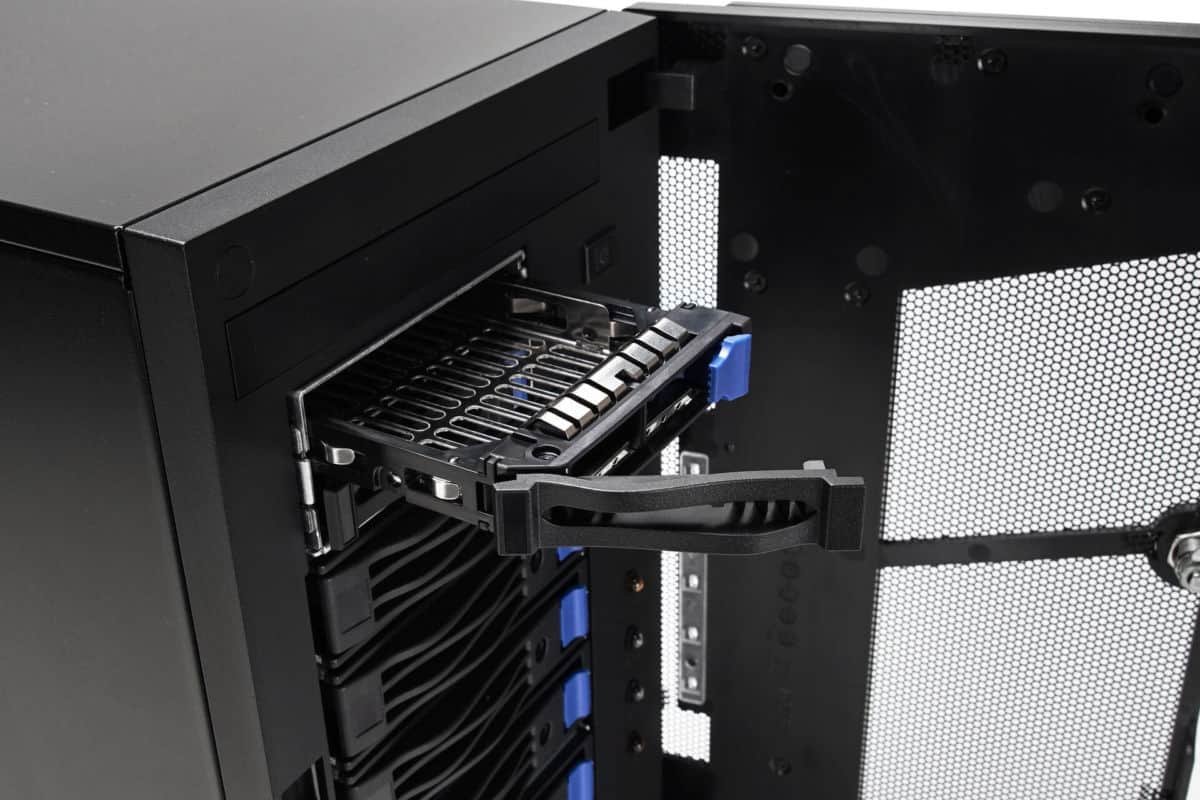

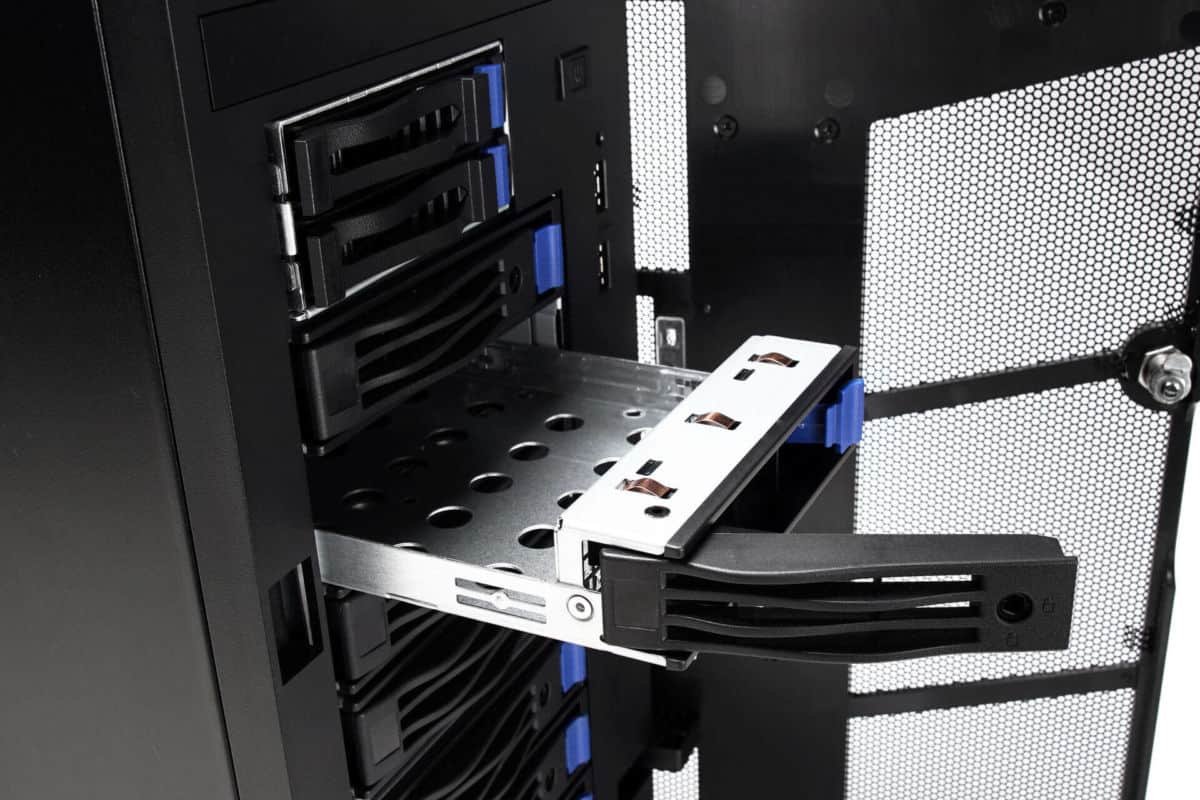

- Supports maximum 10 x 2.5″ hot-swap SSD drives (including 2 x 2.5″ internal HDD)
- File server and NAS devices usage

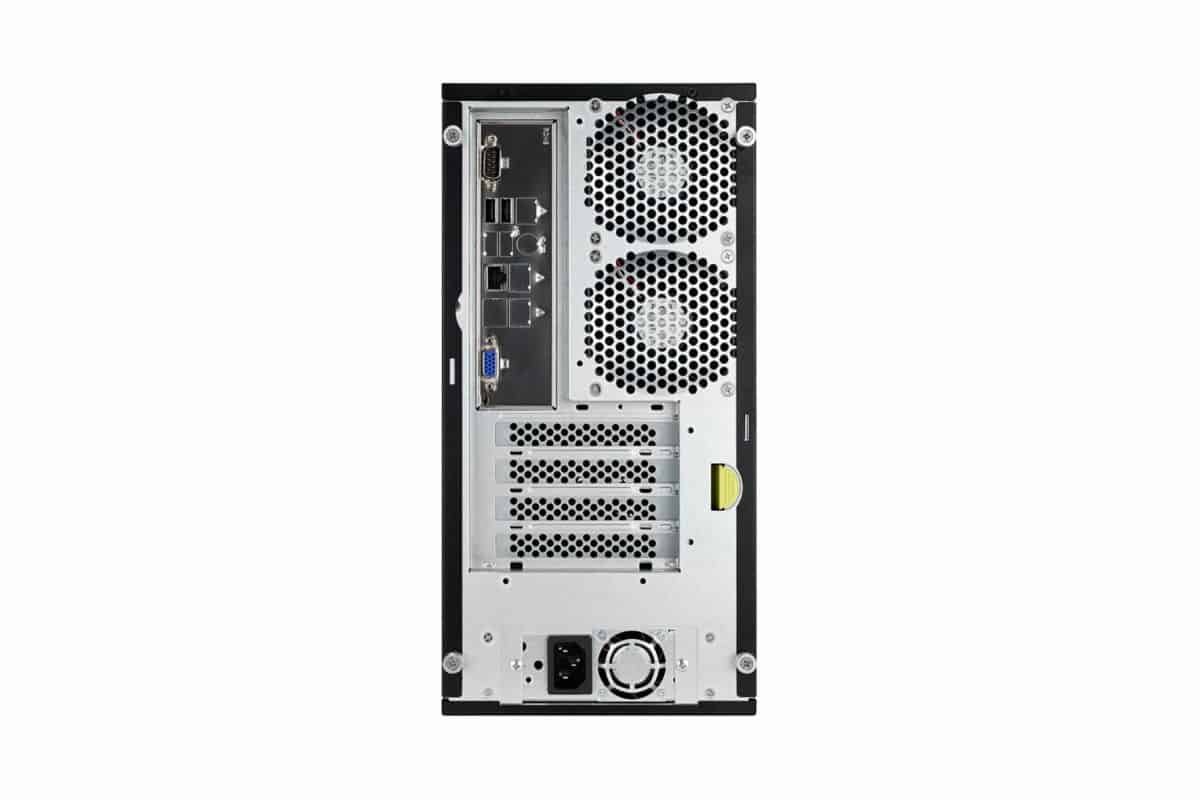

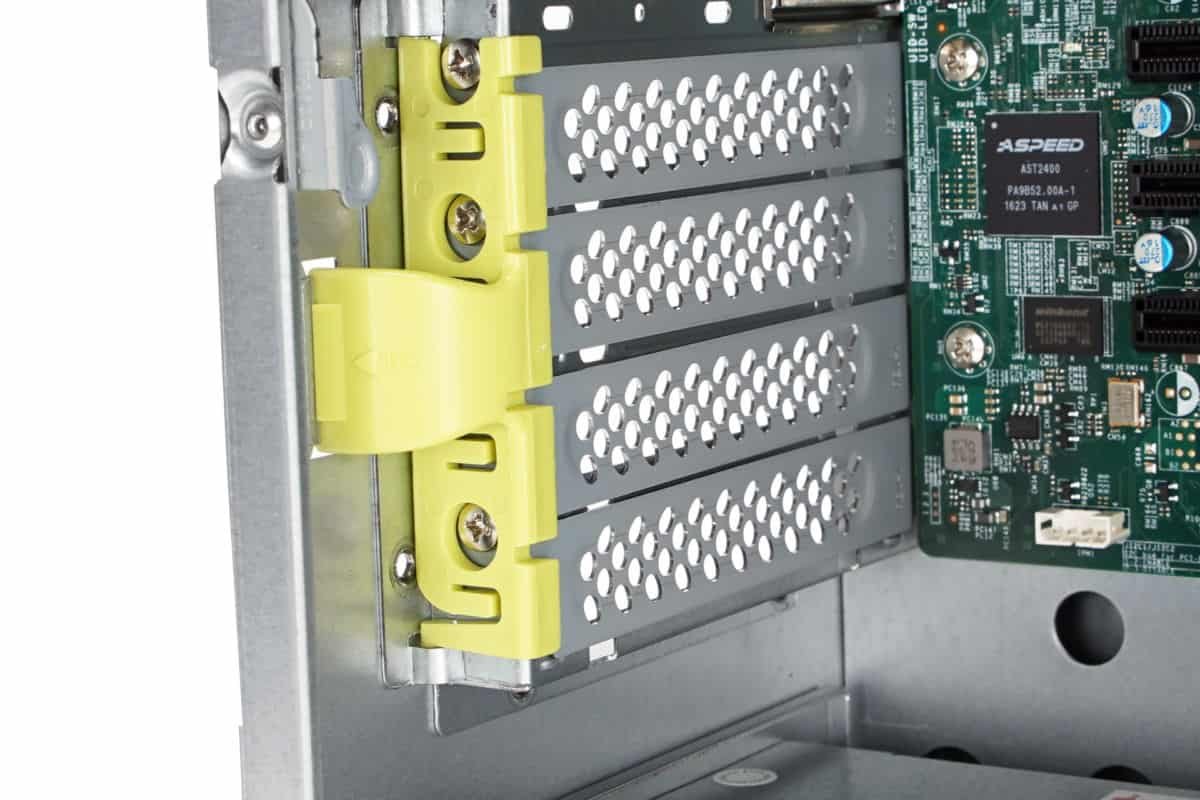

- Supports 4 x full-height PCIe slots
- High-efficiency 80 Plus Gold level redundant power supplies
- Supports maximum 4 x 80mm fans for excellent thermal performance

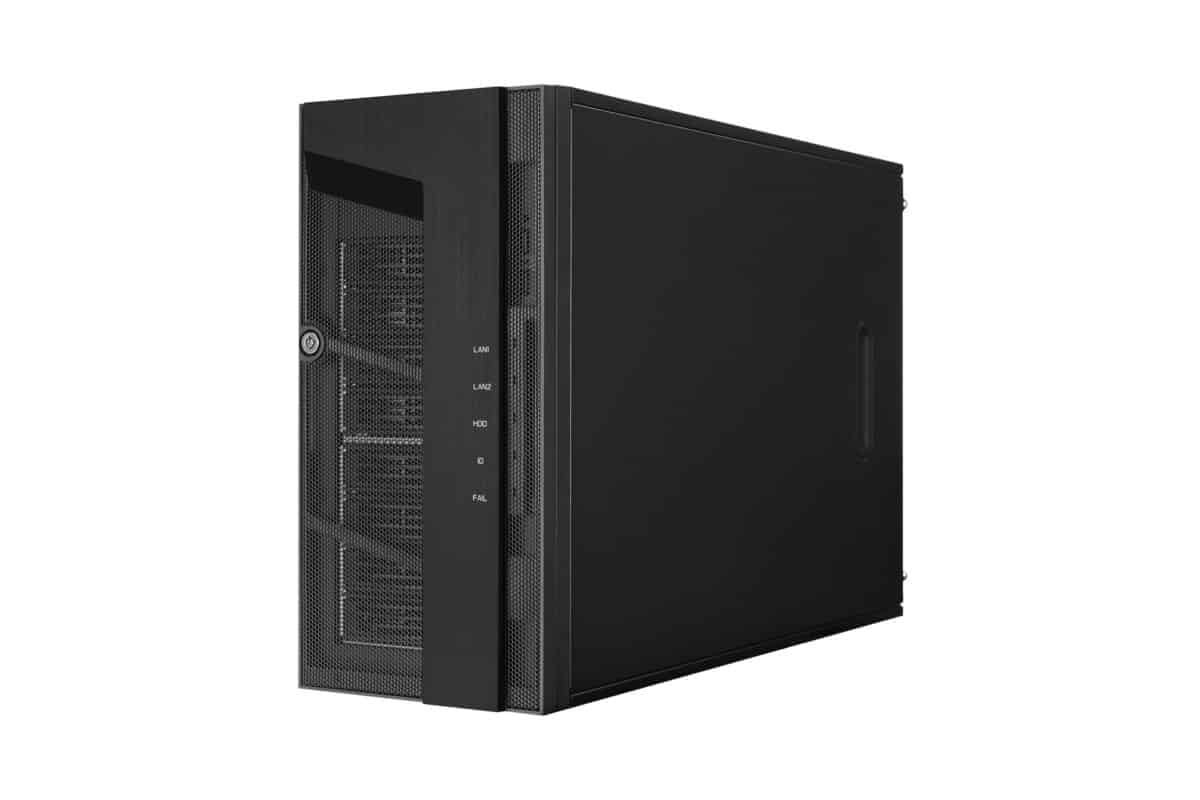

- Supports magnetic lock in the front bezel for hardware security
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_

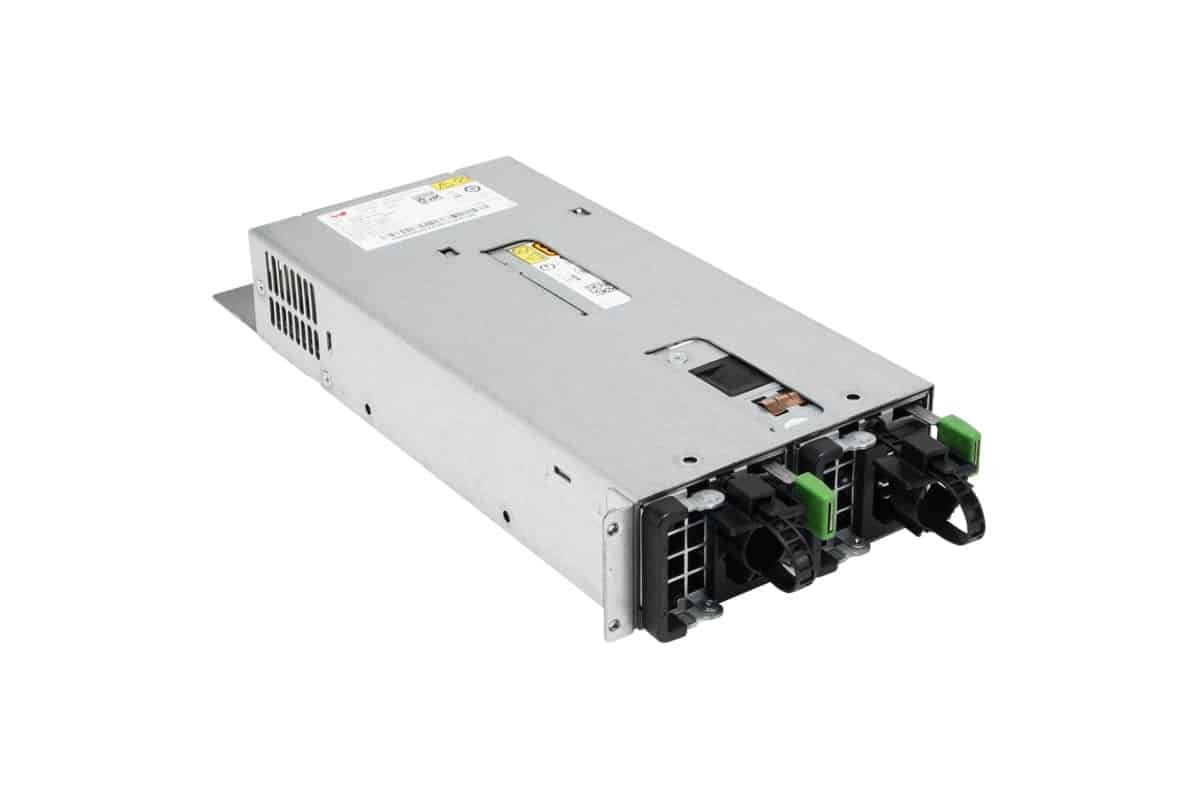

| Power Supply | 1U single PSU, 80 Plus Gold 300W, 80 Plus Gold 500W, 1U Flex PSU, 1U redundant PSU, 80 Plus Gold 315W |
|---|---|
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| External Drive Bays | |
| MB Form Factor | |
| Chassis Indicator | HDD LED, ID LED, LAN1/LAN2 LED, Power LED, system LED |
| Chassis Front Control | Power on/off, reset, USB3.0 x 2 |
| Serie | |

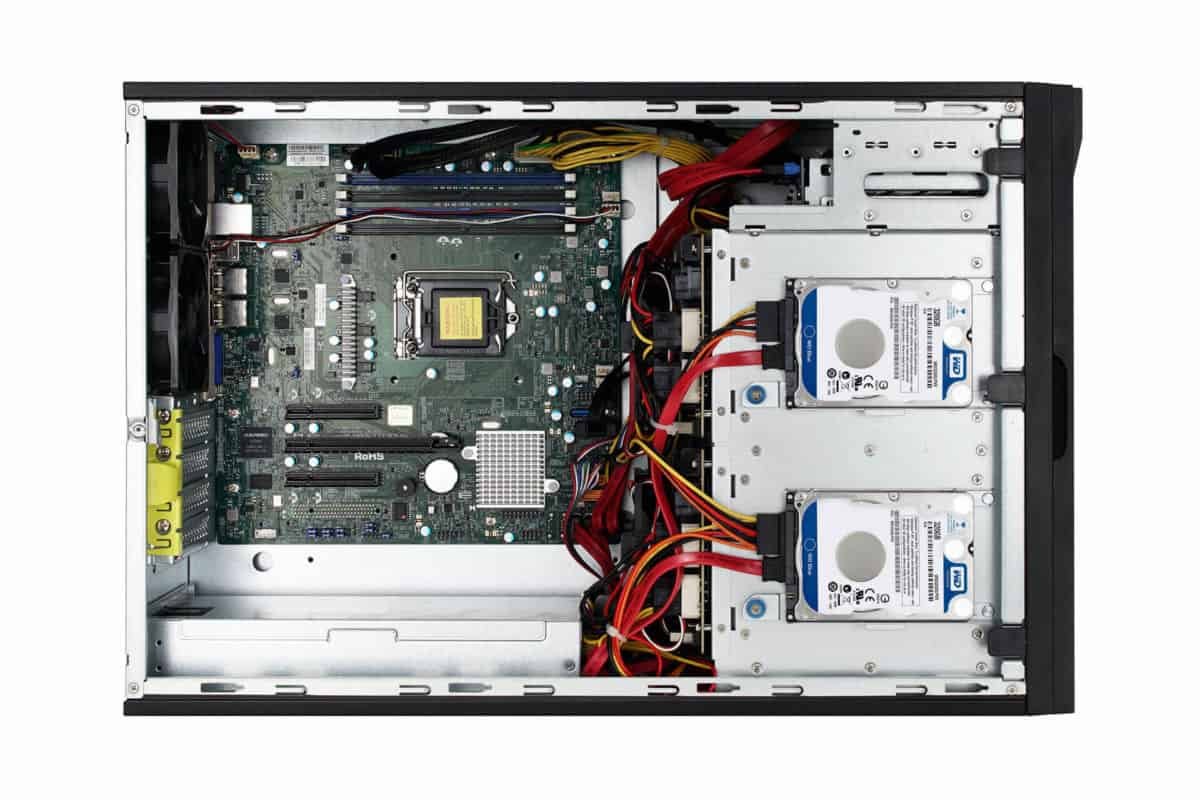

| Internal or Rear Drive Bays | 2.5" x 2 or 3.5" x 1 (require to remove 2.5" HDD x 2) |
| Internal Drive Bays | |
| Indicators | |
| Front Control Panel | |
| Backplane Type-1 | |
| Backplane Type-2 | HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4, Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 |

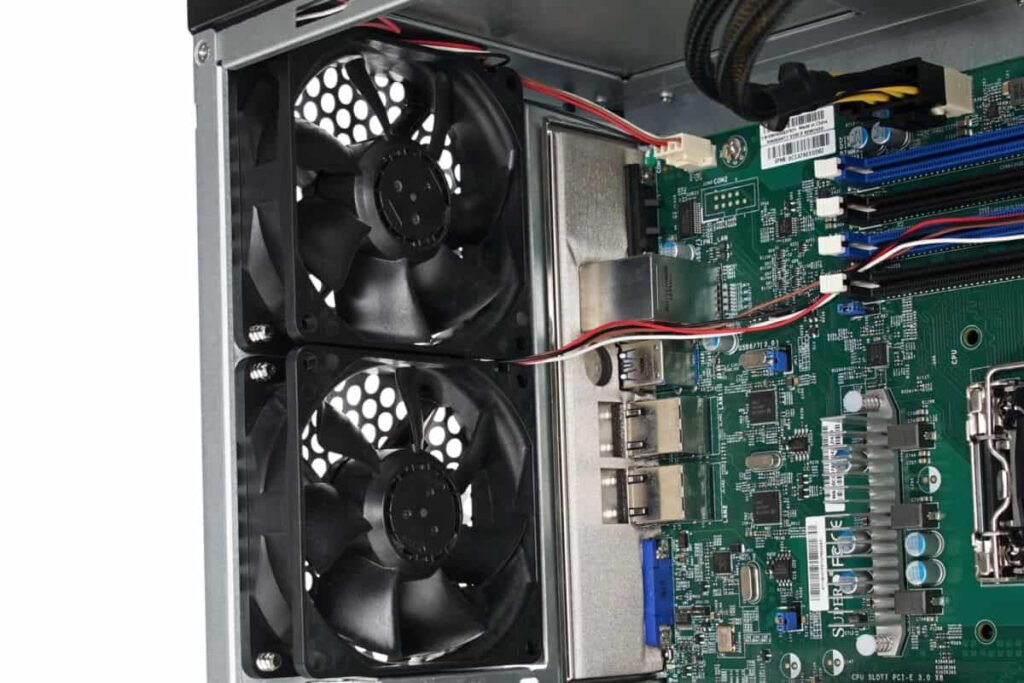

| Cooling Fans | 4200RPM, 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, Middle: 80 x 25mm PWM fans x 2, Rear: 80 x 25mm PWM fans x 2, Supports:, 3600RPM |
| Expansion Slots | |
| Material | |
| Weight | |
| Shipping Information | 20': 168pcs, 40' HQ: 400pcs, 40': 350pcs, Single packing with pallets: |
| Backplane Type-1 Specs | |
| HDD / SSD Interface | SAS/SATA x 4 |
| Backplane Type-2 Specs | |
| Chassis Form Factor | SOHO SMB |
Packaging_
Product Dimensions HWD with Frontpanel
Package dimensions
