IW-PL070

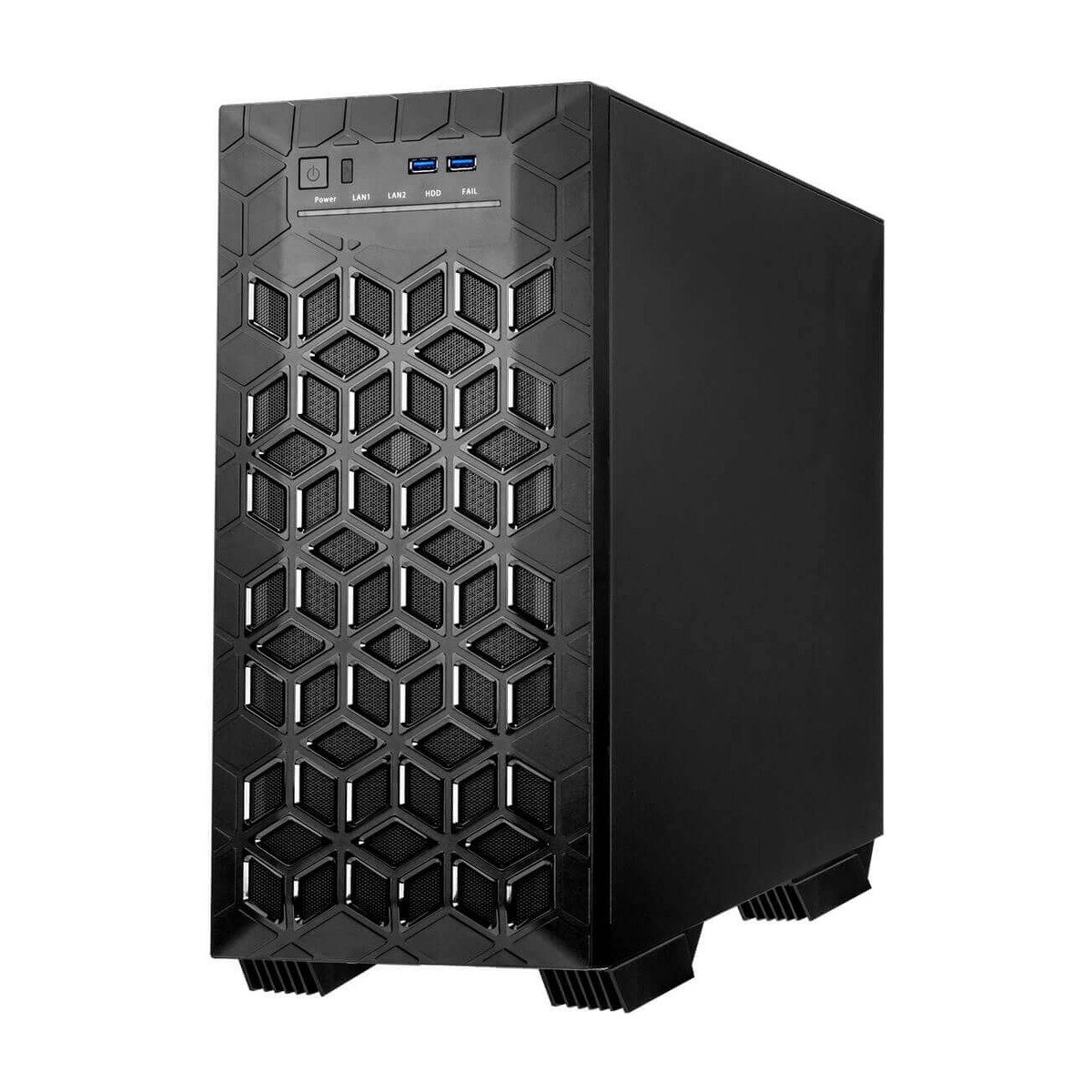

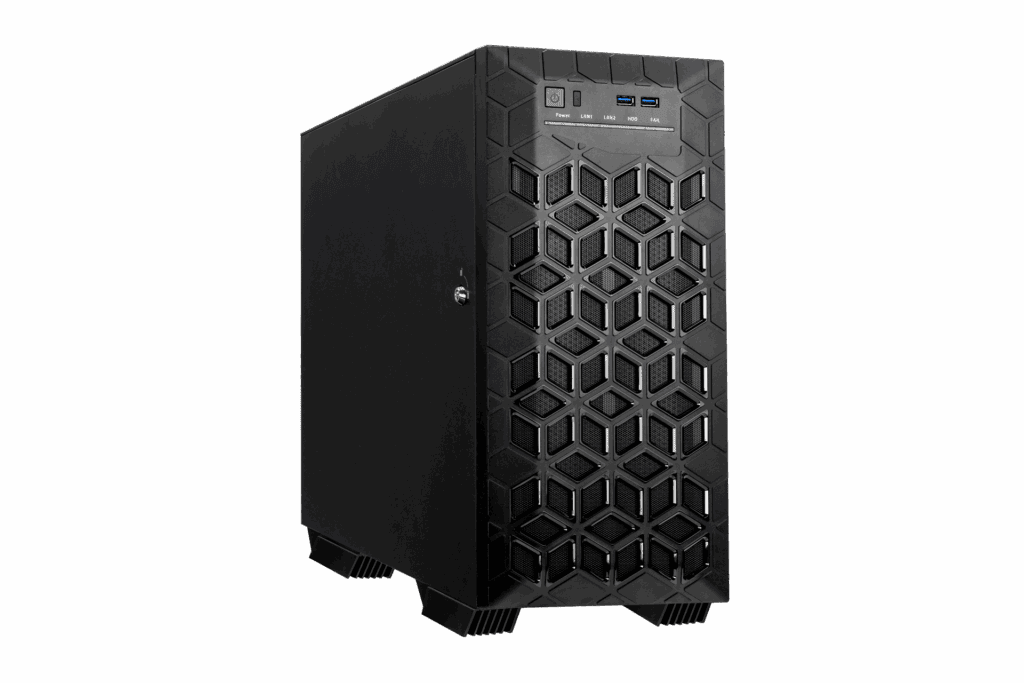

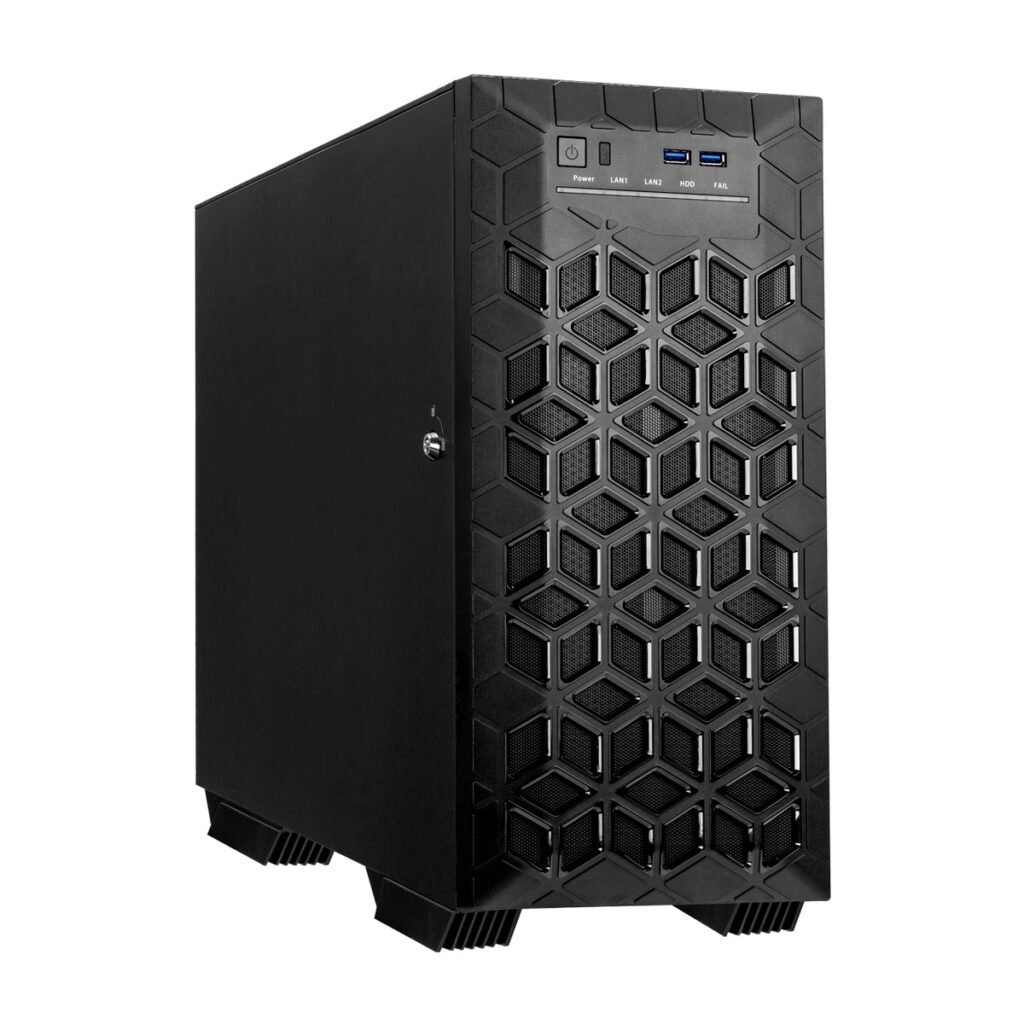

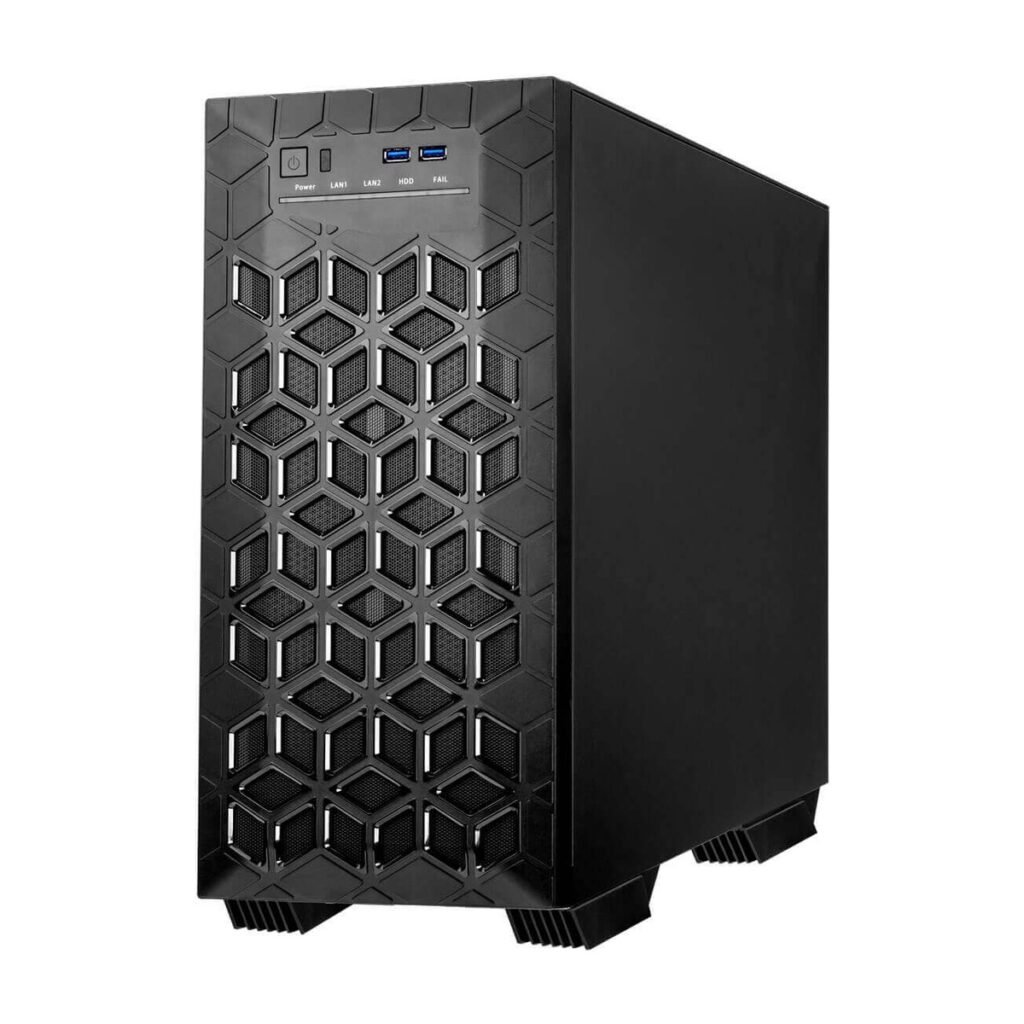

Air/Liquid Cooling Pedestal Server Chassis
Detailinformationen
-
Serie
Pedestal
Chassis Form Factor
Pedestal Tower
Industry Standard
-
Cases Size
Pedestal Tower
MB Form Factor
ATX CEB EEB
Internal or Rear Drive Bays
2.5"/3.5" trays x 5 3 x 15mm) optional 2.5" drives x 4 (1 x 9mm
External Drive Bays
0
Internal Drive Bays
5
Power Supply
1250W PS2 single PSU 1600W 2U 1+1 CRPS 80 Plus Gold 80 Plus Platinum length up to 200mm
Indicators
HDD LANs Power status system fail activity LEDs
Front Control Panel
Power switch system reset USB 3.0 x 2
Security
Intrusion switch (optional) Supports padlock loop or kensington lock
Cooling Fans
60 x 25mm PWM rear fan x 2 (optional) 80 x 25mm PWM front fan x 1 Front: 120 x 25mm PWM fan x 2 (one pre-installed) Middle: 120 x 25mm PWM fan x 2 (one pre-installed) Rear: 120 x 25mm PWM fan x 1 (one pre-installed) or 80 x 38mm PWM fan x 2 (optional)
Expansion Slots
Full-height PCIe slots x 7
Material
Material: SECC Thickness: 0.8~1.0mm
Rail Kit
-
Product Dimensions
560.2 x 200 x 430.1mm
Packing Dimensions
720 x 592 x 340mm
Weight
Gross weight: 14.80kg Net weight: 11.72kg
Shipping Information
20': 140pcs 40': 294pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
- Supports up to five 120mm fans to create excellent thermal performance

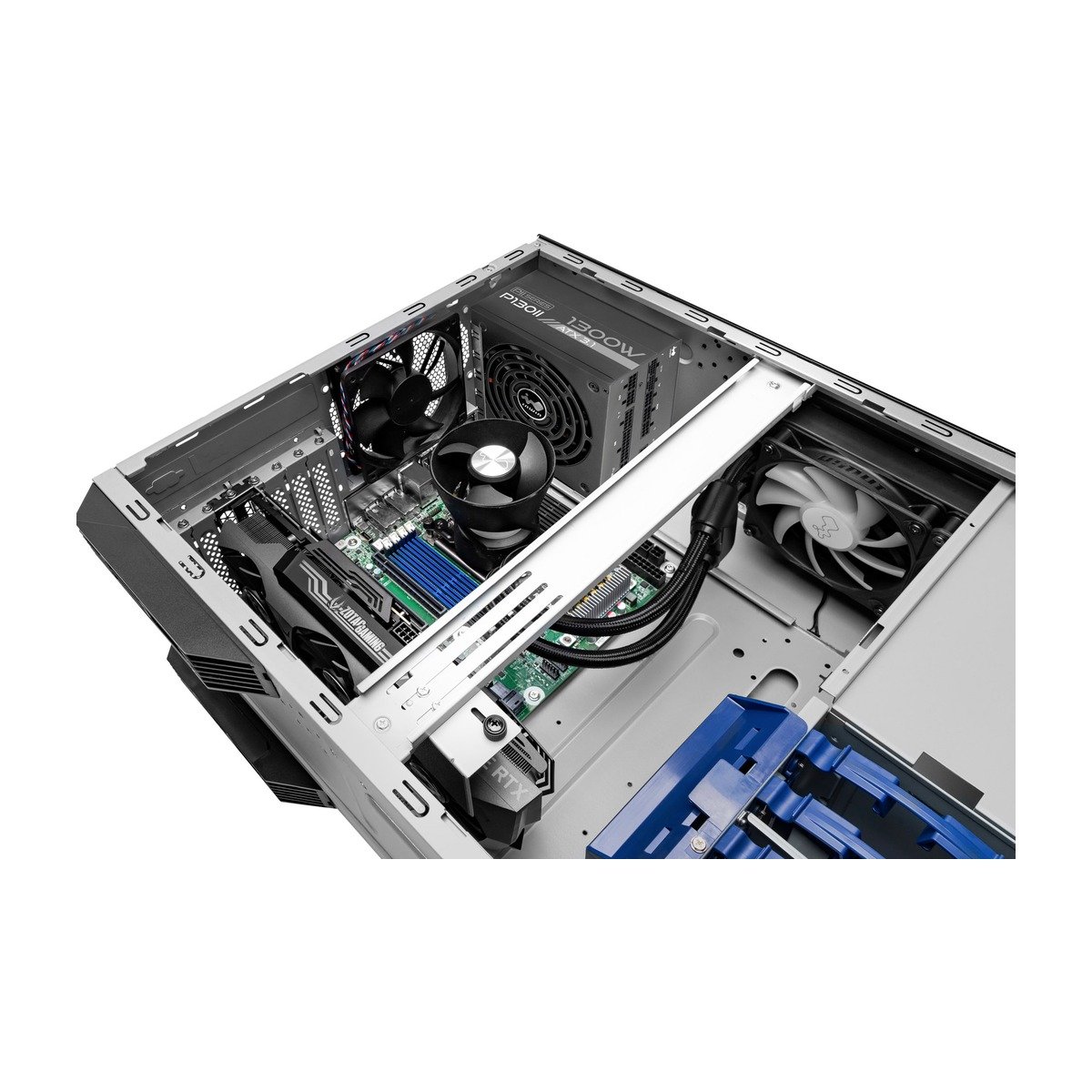

- Compatible with 240mm (max. 2 sets) or 360mm liquid cooling radiators

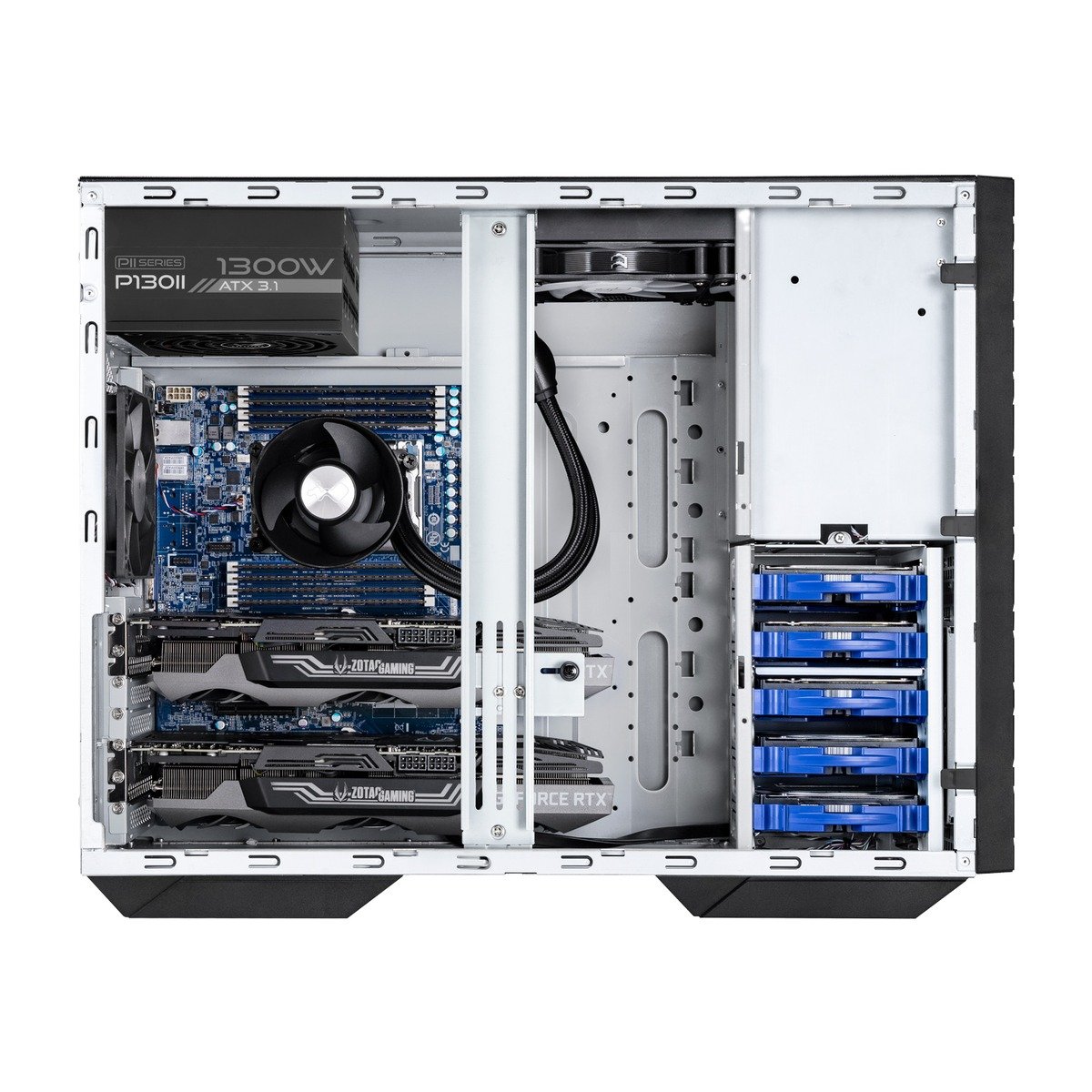

- Contains 7 PCIe slots to accommodate high-end GPUs
- Screwless adjustable card holder for full-length GPUs
- Supports 2.5″/3.5″ HDDs (max. 9)
- Sectioned drive areas to organize operational and storage drives
- Capable of installing ATX or CRPS PSUs
