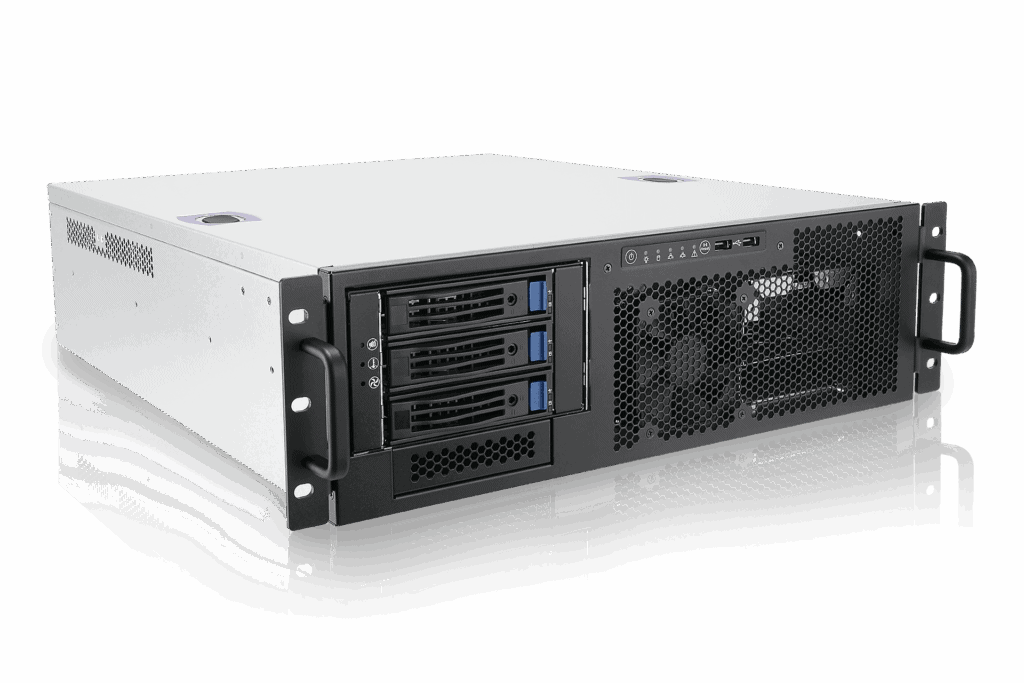

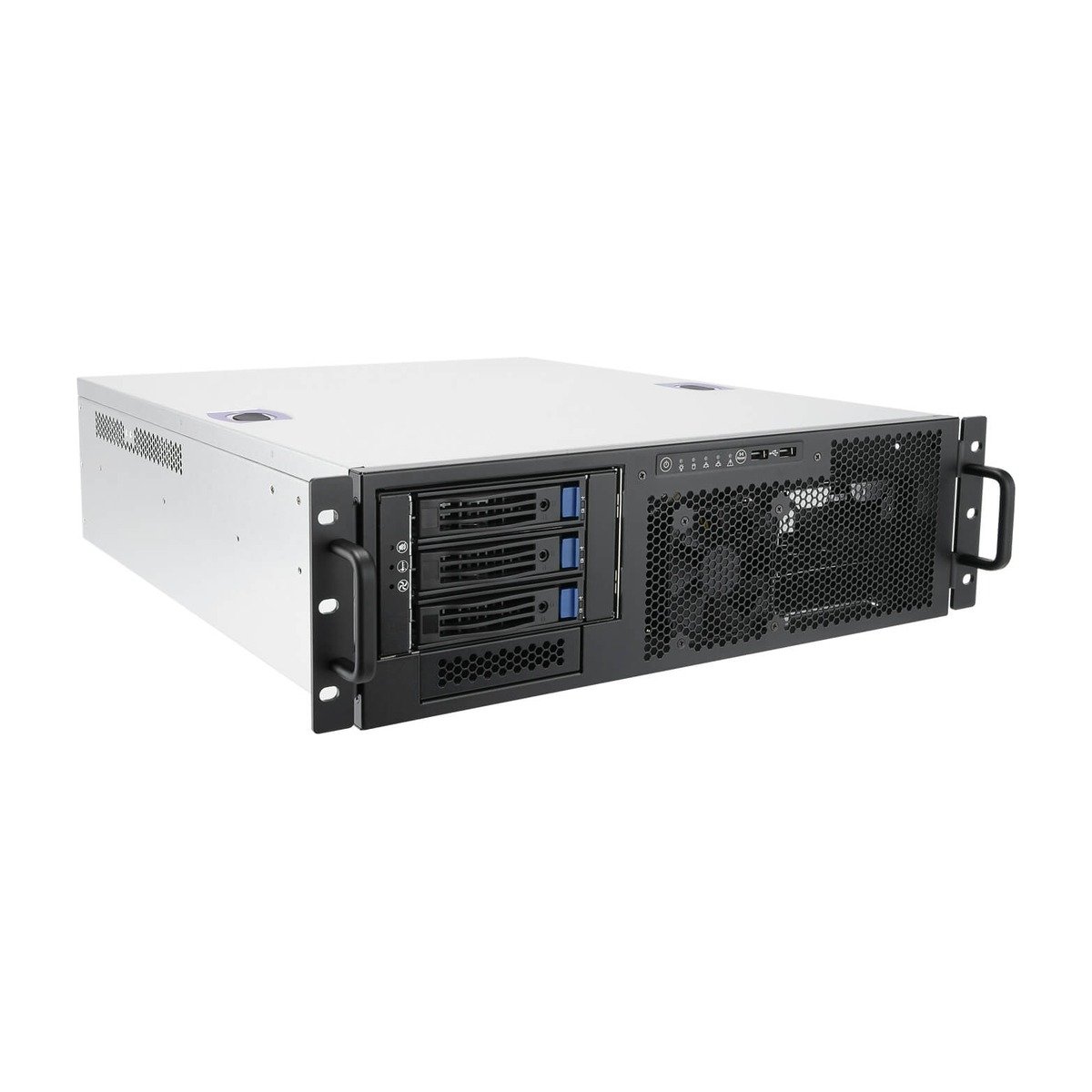

IW-R300N
Open-Bay 3U Short Depth Server Chassis
Detailinformationen
-
Serie
3U
Chassis Form Factor
Rackmount Chassis
Industry Standard
EIA-RS310D
Cases Size
3U Rackmount Chassis
MB Form Factor
ATX CEB
Internal or Rear Drive Bays
3.5" x 6
External Drive Bays
3
Internal Drive Bays
6
Power Supply
Form Factor: 2U single or 2U 1+1 redundant redundant 550W Watt: single 500W
Indicators
HDD LAN activity LEDs Power status

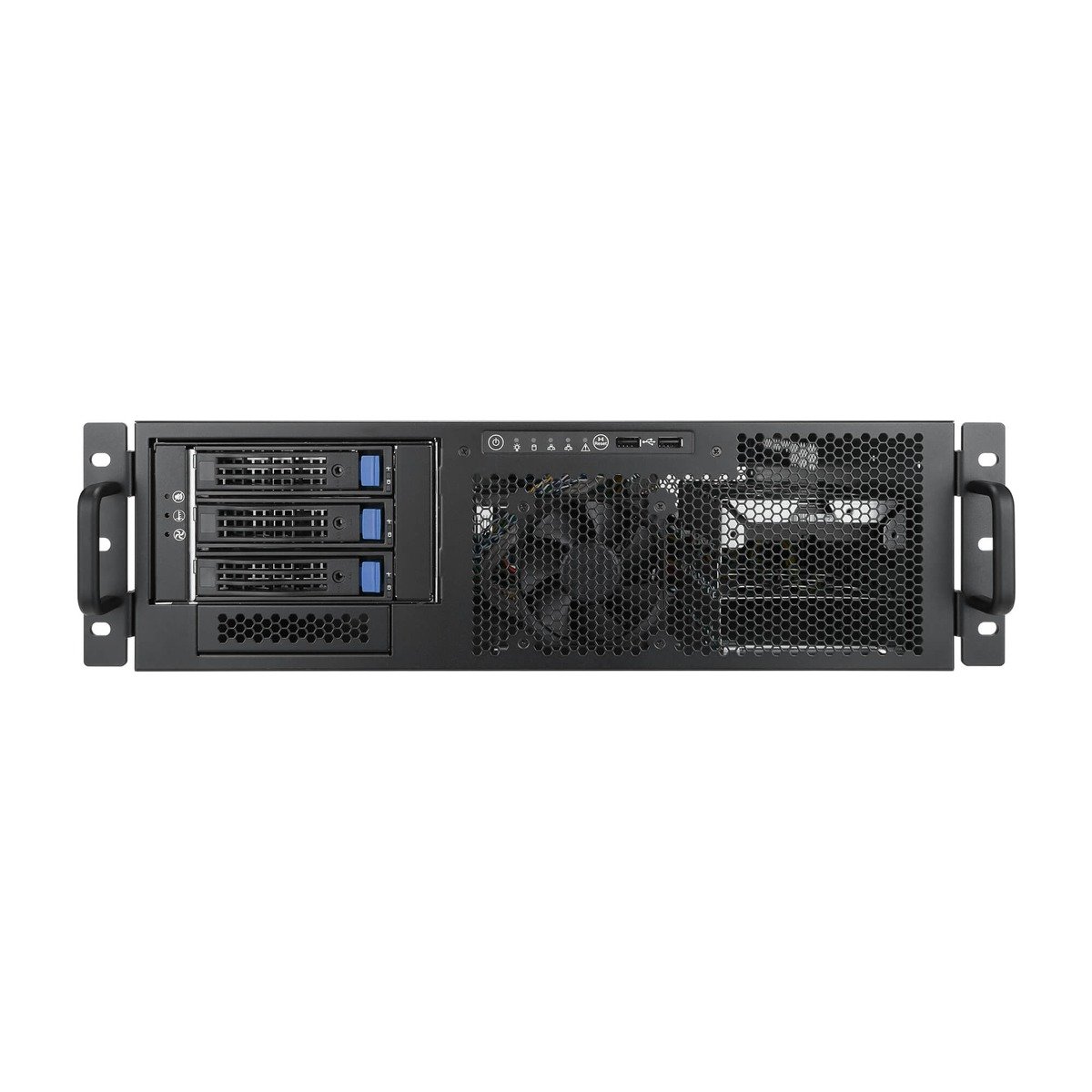

Front Control Panel
Power switch system reset USB 2.0 x 2
Security
Intrusion switch
Cooling Fans
60 x 25mm PWM rear fan x 2 (optional) 80 x 25mm PWM front fan x 1
Expansion Slots
Full height PCI slot x 7
Material
Material: SGCC Thickness: 1.2mm
Rail Kit
Supports 28" ball-bearing rail
Product Dimensions
508 x 482.6 x 133.4 mm
Packing Dimensions
690 x 595 x 258mm
Weight
Gross weight: 16.2kg Net weight: 8.5kg
Shipping Information
20': 168pcs 40' HQ: 400pcs 40': 350pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
- Compatible with single or redundant power supply

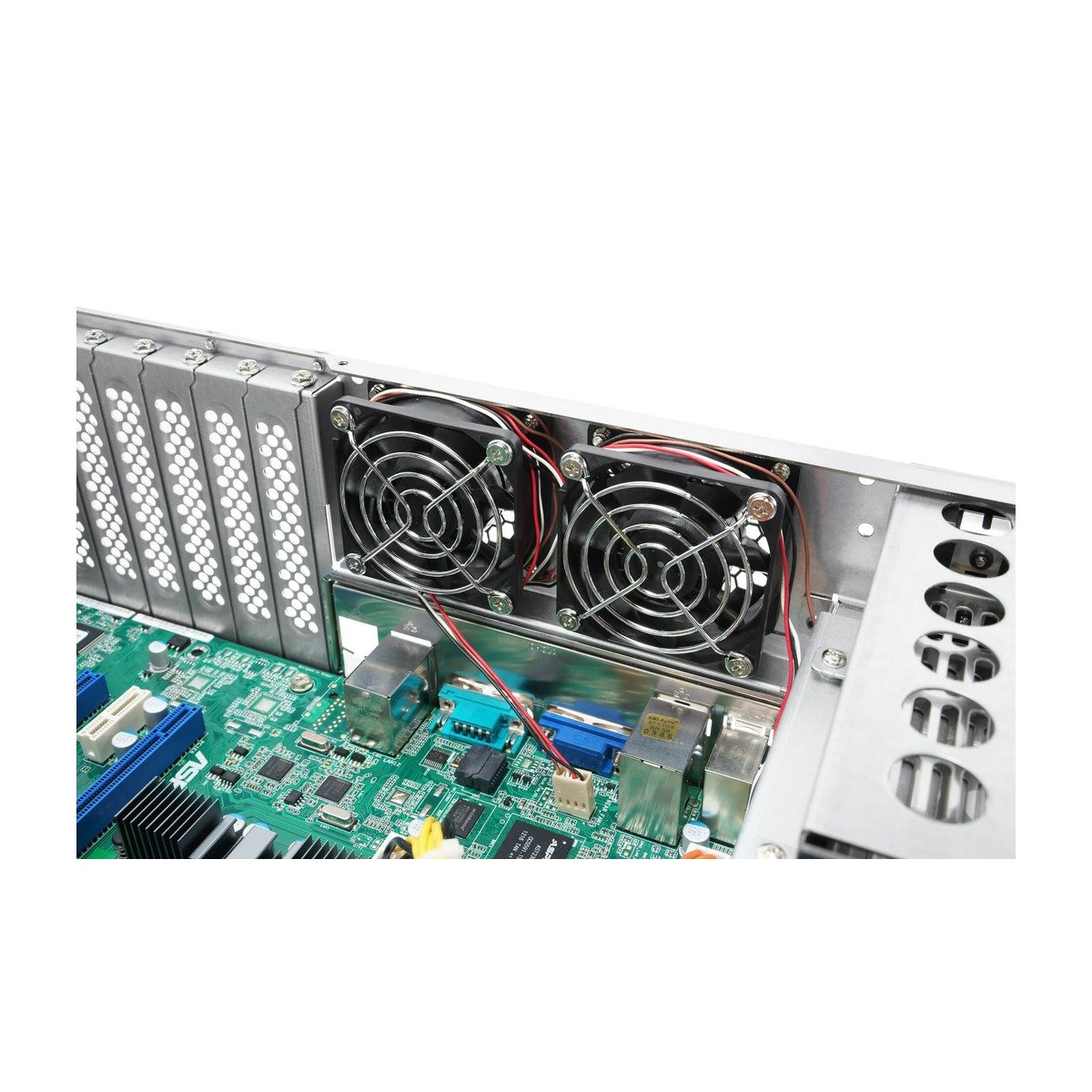

- Supporting two rear fan to optimize thermal exhaust efficiency
- Expandable storage option with InWin storage kit
- Supports 60 x 25mm rear fan x 2 for optimized cooling (optional)
- Tool-less top cover for quick maintenance
- Vibration resistant design
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 508 × 482,6 × 133,4 cm |
|---|---|
| Power Supply | Form Factor: 2U single or 2U 1+1 redundant, Watt: single 500W, redundant 550W |
| Product Dimensions | |
| Security | |
| Packing Dimensions | |
| Cases Size | |
| External Drive Bays | |
| Chassis Front Control | Power switch, system reset, USB 2.0 x 2 |
| Serie | |
| Industry Standard | |
| Internal or Rear Drive Bays | 3.5" x 6 |
| Internal Drive Bays | |
| Indicators | |
| Front Control Panel | |
| Cooling Fans | 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1 |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | 20': 168pcs, 40' HQ: 400pcs, 40': 350pcs, Single packing with pallets: |
| Chassis Form Factor | Rackmount Chassis |
| MB Form Factor | |
| Chassis Indicator | HDD, LAN activity LEDs, Power status |
Packaging_
Product Dimensions HWD with Frontpanel
-
Package dimensions
-
