IW-RJ472-08

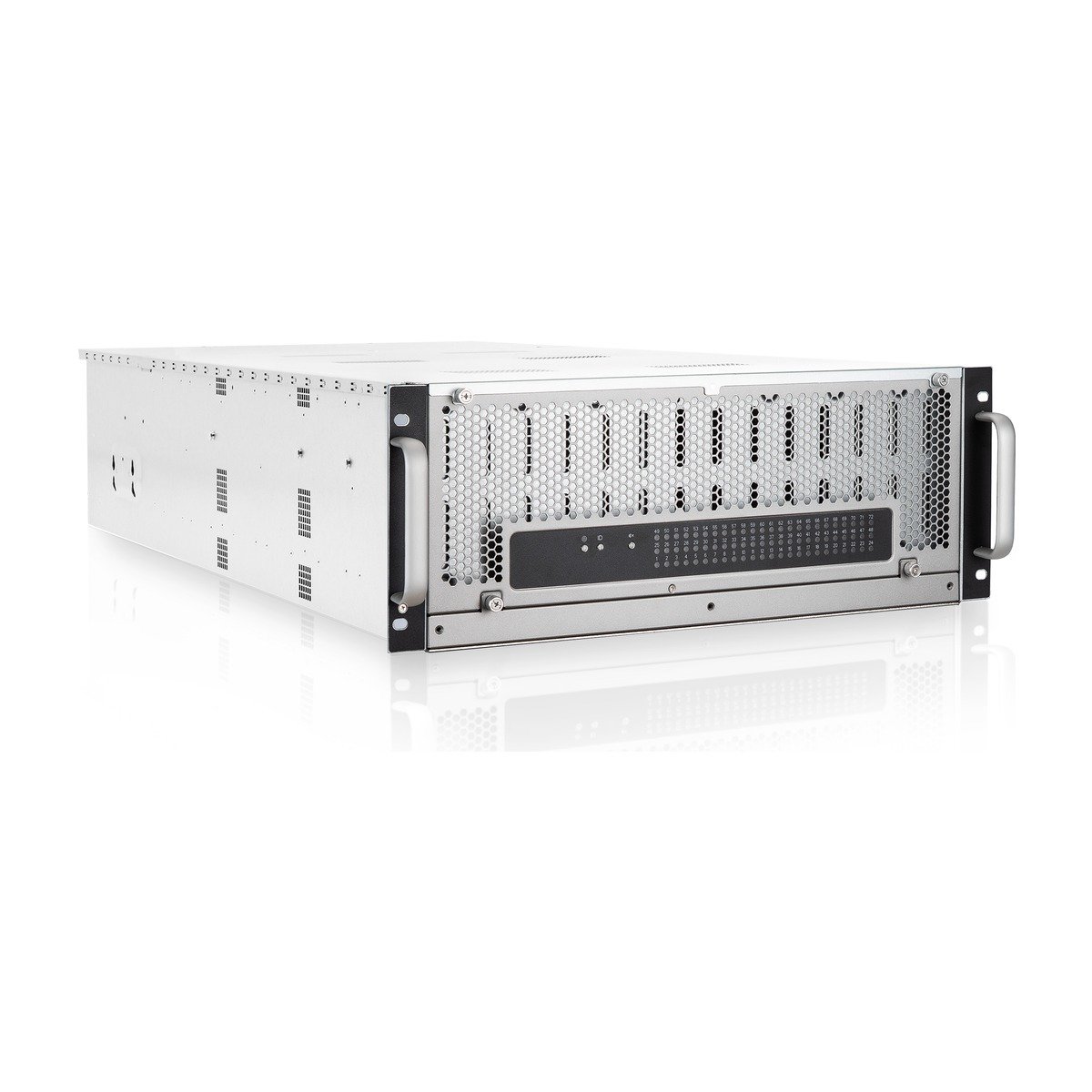

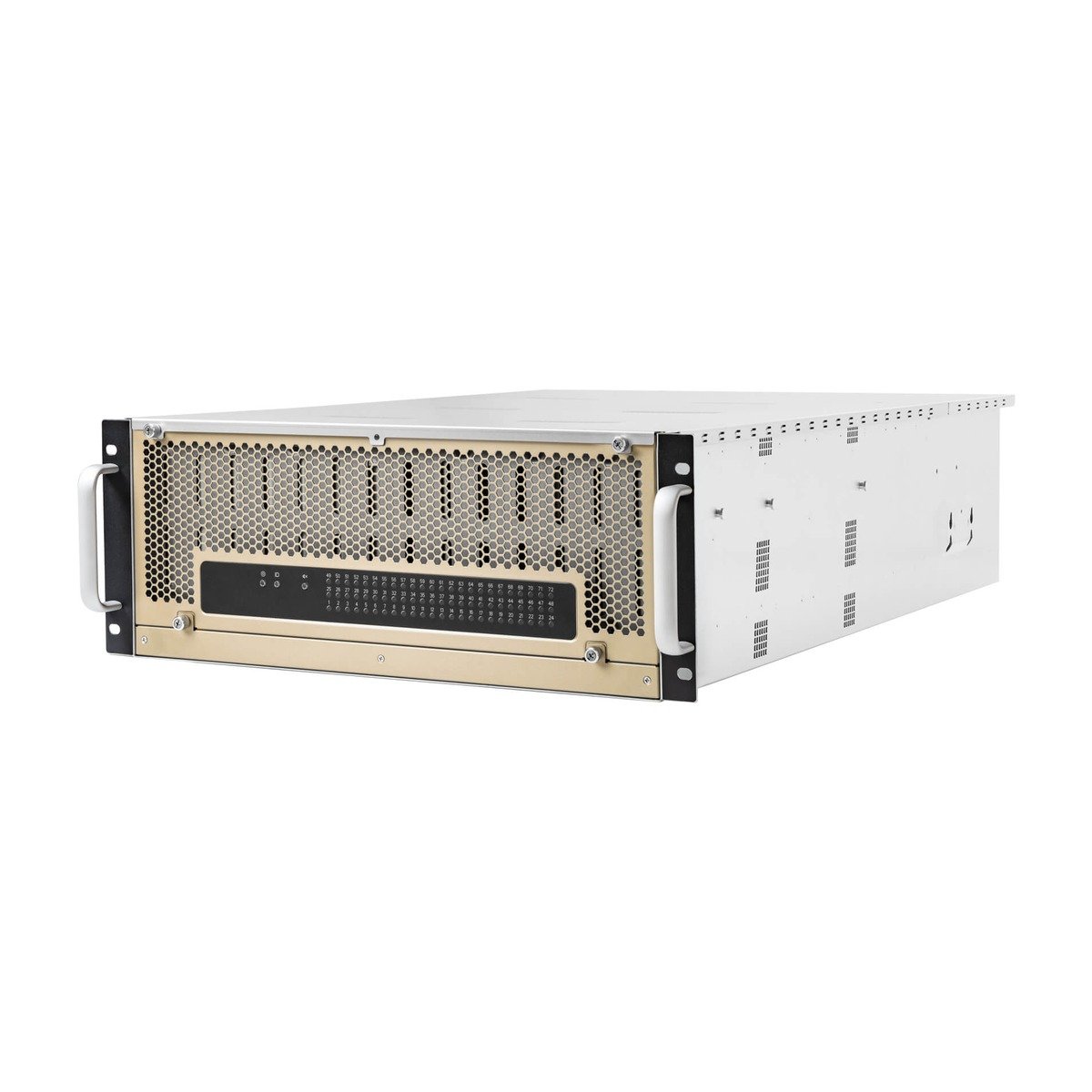

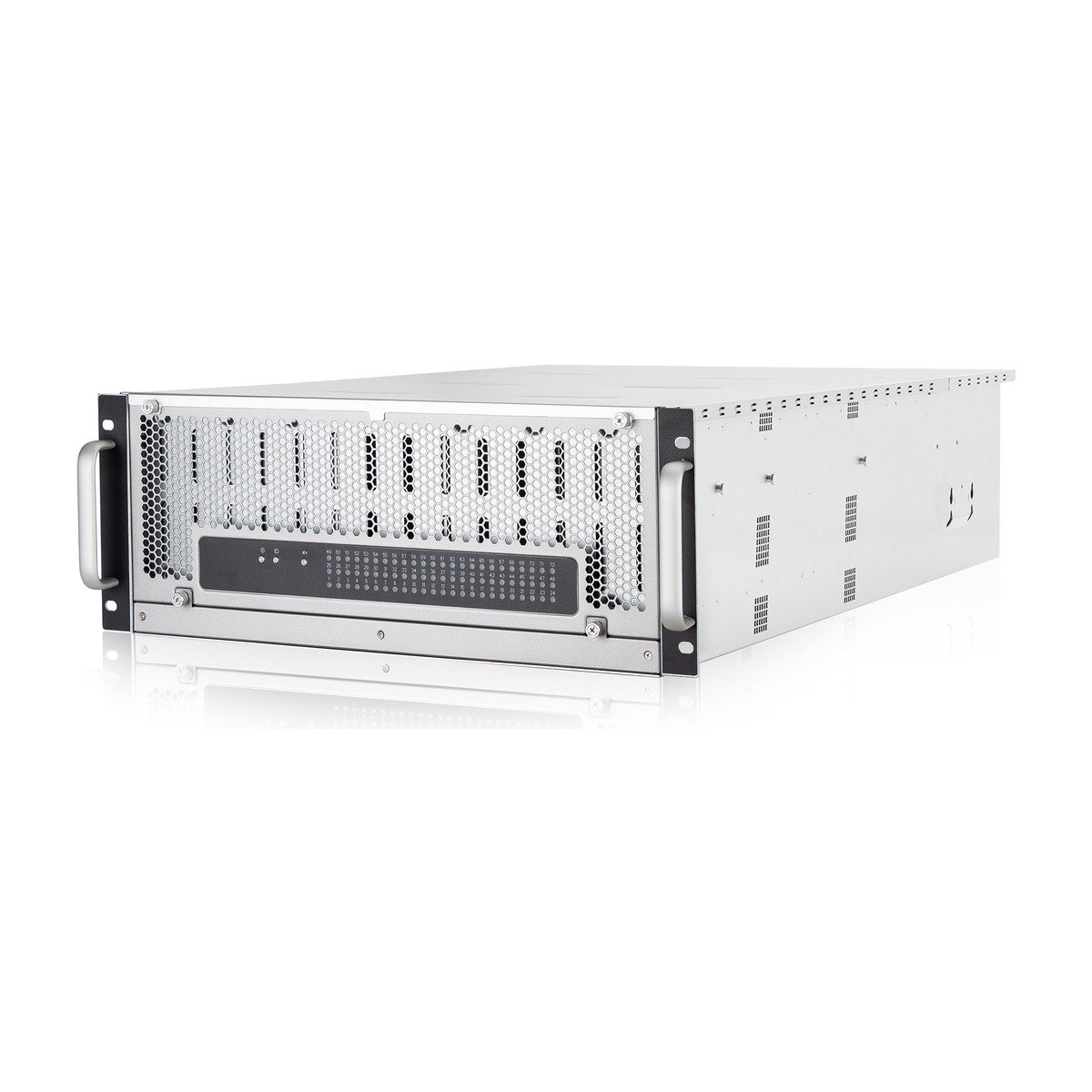

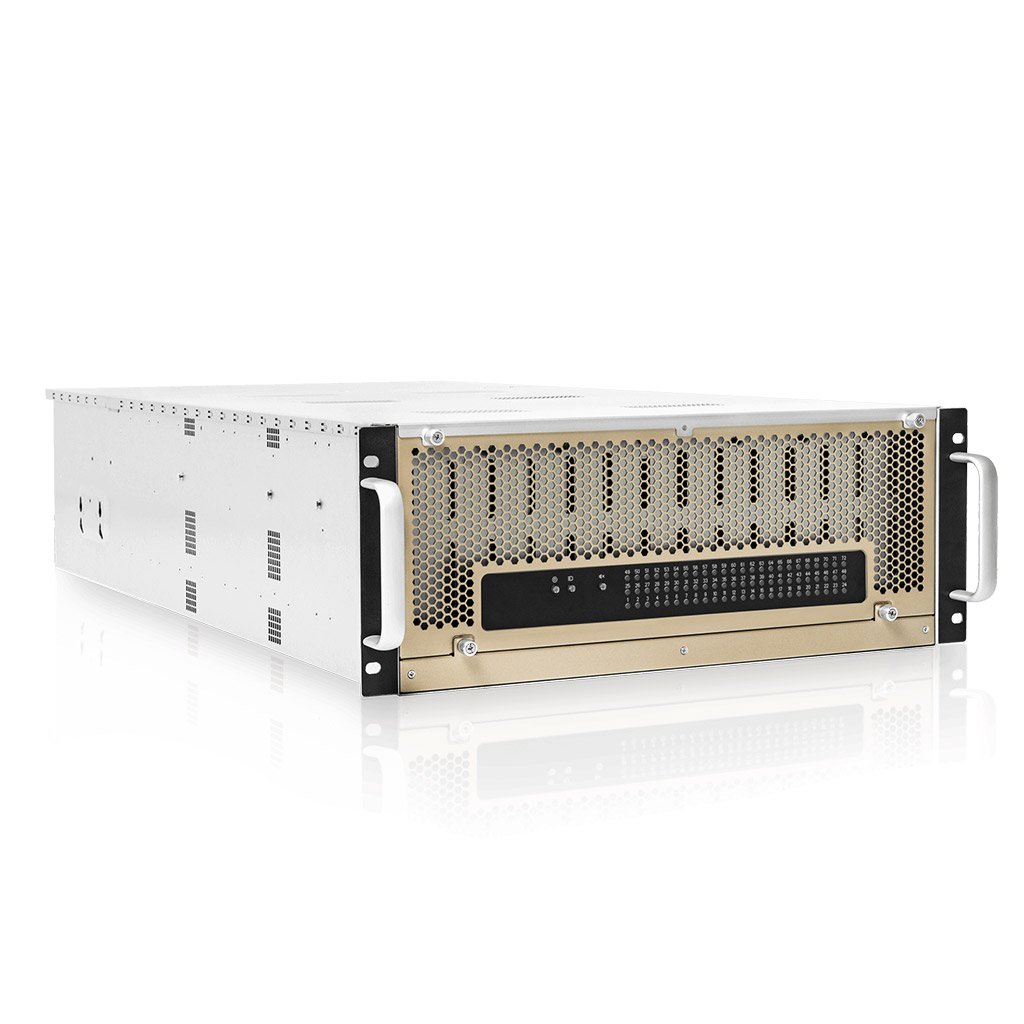

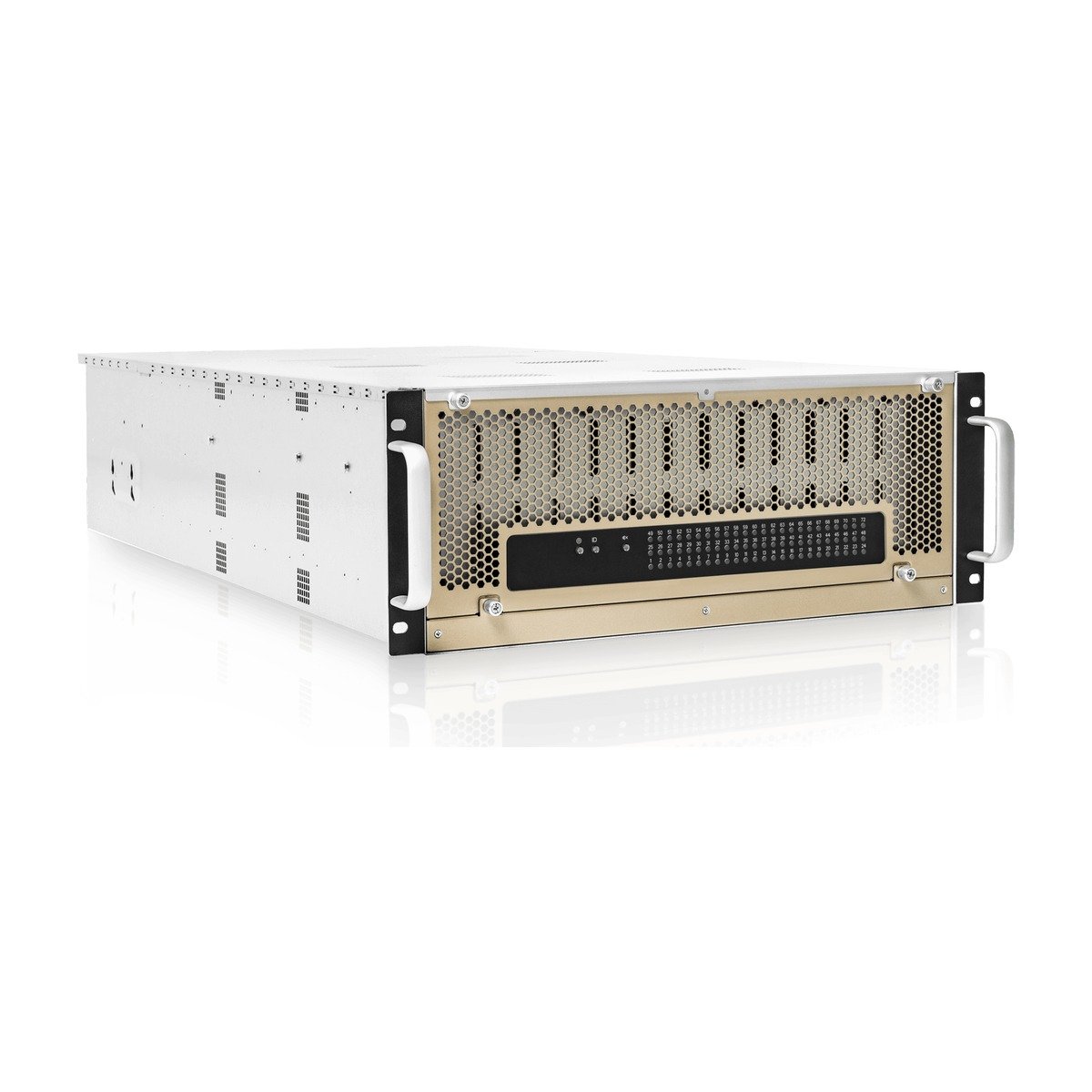

Ultra Density 4U 72-Bay JBOD Enclosure
Detailinformationen
-
Serie
4U
Chassis Form Factor
JBOD
Industry Standard
EIA-RS310D
Cases Size
4U JBOD
MB Form Factor
-
Internal or Rear Drive Bays
2.5"/3.5" hot-swap trays x 72 (SAS 12Gbps SATA 6Gbps)
External Drive Bays
0
Internal Drive Bays
72
Power Supply
Form Factor: 80 Plus Platinum CRPS Watt: 1200W
Indicators
drive status LEDs for bay 1-72 Status LED
Front Control Panel
chassis ID Power on/off
Security
-
Cooling Fans
12000 RPM 60 x 25mm PWM rear fan x 2 (optional) 80 x 25mm PWM front fan x 1 80 x 38mm PWM hot-swap fans x 4
Expansion Slots
-
Material
Material: SGCC Thickness: 1.2mm
Rail Kit
28" tool-less ball-bearing slide rail included
Product Dimensions
985.75 x 447.5 x 177.1mm
Packing Dimensions
127 x 64 x 68mm
Weight
Gross weight: 63.81kg Net weight: 51.48kg
Shipping Information
-
Zur Erstellung einer Wunschliste bitte einloggen.
- Top-load 2.5″/3.5″ hot-swap HDD trays x 72 support SAS/SATA transfer speed.
- Cross-position trays to limit vibrations caused by HDDs.
- Dual-path storage for high-availability systems.
- Modular design, lower complexity, fast and easy maintenance.
- Generating intensive airflow by using four 80 x 38mm PMW hot-swap fans.
- Web-based GUI provides the easiest way to manage JBOD system.
- CRPS 1200W 80 Plus® Platinum certified.
- Compatible with 1200mm deep cabinets.
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 985,75 × 447,5 × 177,1 cm |
|---|---|
| Power Supply | |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| Chassis Form Factor | JBOD |
| External Drive Bays | |
| Chassis Indicator | drive status LEDs for bay 1-72, Status LED |
| Chassis Front Control | chassis ID, Power on/off |
| Serie | |
| SUB - Serie | High Density JBOD |
| Industry Standard | |
| Internal or Rear Drive Bays | 2.5"/3.5" hot-swap trays x 72 (SAS 12Gbps, SATA 6Gbps) |
| Internal Drive Bays | |
| Indicators | |
| Front Control Panel | |
| Cooling Fans | 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 12000 RPM, 80 x 38mm PWM hot-swap fans x 4 |
| 12Gbps Expander Module | Cascade x 1), Edge: 3 x LSI 35x36R expander support Bridge:2 x LSI 35×48 expander support |
| Management | alarm warming, HDD monitor, Smart fan, thermal monitor, voltage monitor |
| Host / Expansion Port | |
| SES | |
| Maintenance | |
| HDD Power Management | |
| Temperature | |
| Material | |
| Rail Kit | |
| Weight |
