IW-RS224-07
Form Factor: 80 Plus Platinum CRPS Watt: 550W/800W/1200W/1600W
Zur Erstellung einer Wunschliste bitte einloggen.
- Intel® Xeon Scalable & AMD EPYC family compliant
- Backplanes with Mini-SAS HD, OCuLink or Slimline connectors (compatible with PCIe 4.0)
- 2.5″ hot-swap SSD trays x 24 (optional NVMe trays x 8, distinguishes U.2 NVMe SSDs)

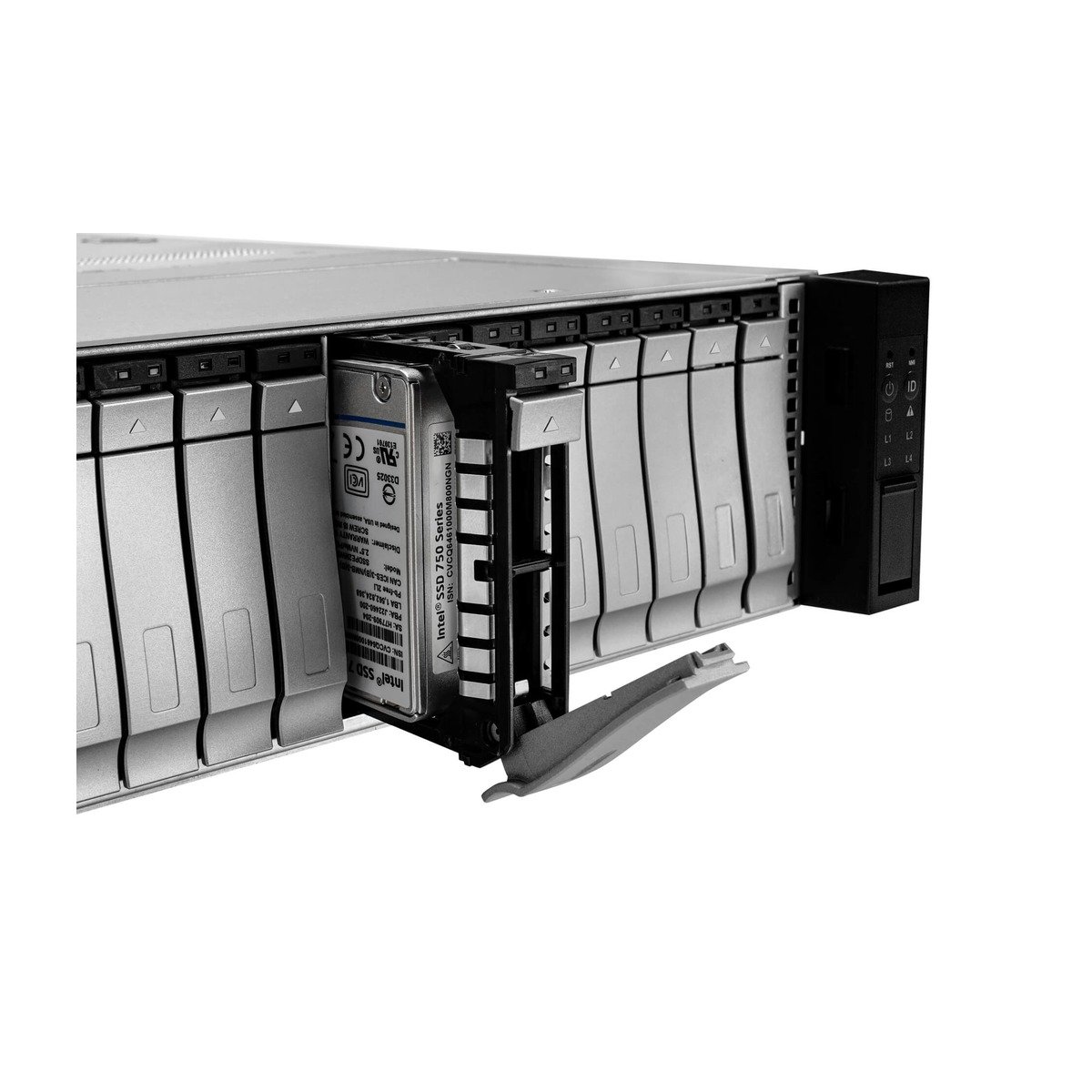

- Tool-less design for 2.5″ SSD tray
- End-to-end 12Gbps SAS host, expander, and disk support
- 2 x 2.5″ SAS/SATA SSDs for system disks at the rear of the chassis
- Highly efficient 1600W, 80 Plus® Platinum CRPS (optional)
- High-speed cooling fans for excellent thermal performance
- Supports tool-less ball-bearing slide rails
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Detailinformationen | 2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis, 2.5" hot-swap SSD trays x 24 (optional NVMe trays x 8, 80 Plus® Platinum CRPS (optional), and disk support, Backplanes with Mini-SAS HD, distinguishes U.2 NVMe SSDs), End-to-end 12Gbps SAS host, High-speed cooling fans for excellent thermal performance, Highly efficient 1600W, Intel® Xeon Scalable AMD EPYC family compliant, OCuLink or Slimline connectors (compatible with PCIe 4.0), Supports tool-less ball-bearing slide rails, Tool-less design for 2.5" SSD tray, expander |
|---|---|
| Serie | |
| Chassis Form Factor | Rackmount Chassis |
| Industry Standard | |
| Cases Size | |
| MB Form Factor | |
| External Drive Bays | |
| Internal Drive Bays | |
| Power Supply | Form Factor: 80 Plus Platinum CRPS, Watt: 550W/800W/1200W/1600W |
| Indicators | HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED |
| Front Control Panel | |
| Cooling Fans | 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 12000RPM Modular design with anti-vibration, 80 x 38mm PWM hot-swap fans x 4 |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Product Dimensions | |
| Packing Dimensions | |
| Weight | |
| Shipping Information | 20': 160pcs, 40' HQ: 414pcs, 40': 368pcs, Single packing with pallets: |
Packaging_
Product Dimensions
660 x 448 x 87.5 mm
Package dimensions
845 x 595 x 223mm
