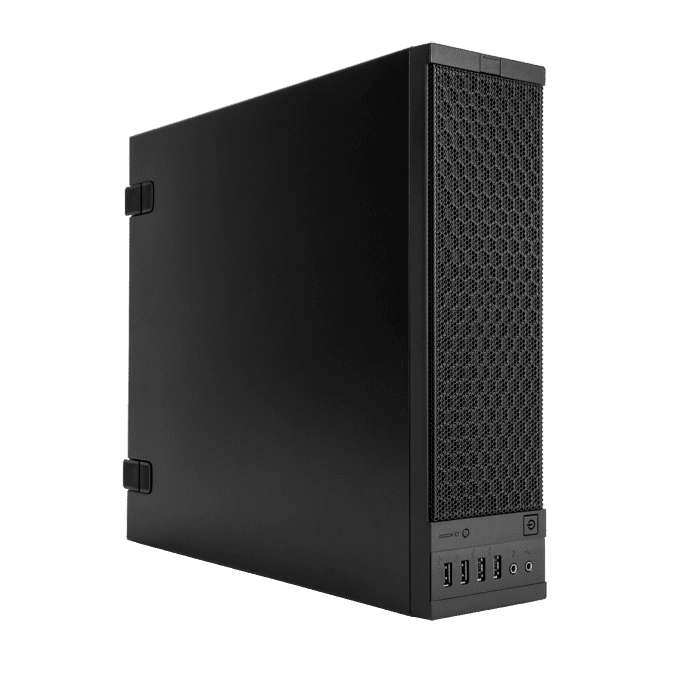

InWin CE723

11.9L Small Form Factor Available in Selected Regions Only Innovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical and Horizontalstance.
Slim Chassis
Superior Thermal Solution
Highly Expandable
Easy Installation
Quick Release Side Cove

Dimensions	334 × 97 × 370 cm
I/O Expansion Slots	Low Profile Slot x 4
Compatibility	Maximum CPU Cooler Height: 45 mm, Maximum CPU Cooler Height: 81 mm, Maximum Graphics Card Length / Width: 187 mm / 80 mm, Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
Thermal Solution	90mm Front Fan x 1, Supports Removable Air Filter
Safety	CE and FCC Class B Requirements, Meets RoHS
Security	Padlock Loop / Kensington Slot
Optional	Chassis Intrusion Switch, Key Lock Side Panel, Quick Release Side Cover, Type-C
Packing Dimensions	475 x 400 153 mm
Shipping Single Packing	040, 152 40’ H: 2, 20’: 1, 40’: 2, 443
Shipping Pallet Packing	016, 20’: 700, 40’ H: 2, 40’: 1, 680
Cases Size	S.F.F Slim Chassis
Colour 1	Black
External Drive Bays	0
Internal Drive Bays	2
Chassis Form Factor	S.F.F Slim Chassis
MB Form Factor	Micro-ATX, Mini-ITX
USB Front Ports	USB 2.0 x 2 (or USB 2.0 x 4), USB 3.0 x 2
Audio Front Ports	HD Audio
Power Supply	Standard TFX 12V Form Factor
Product Dimensions	334 x 97 x 370 mm
Liter Volumen	11.9 L
Model	InWin CE723
