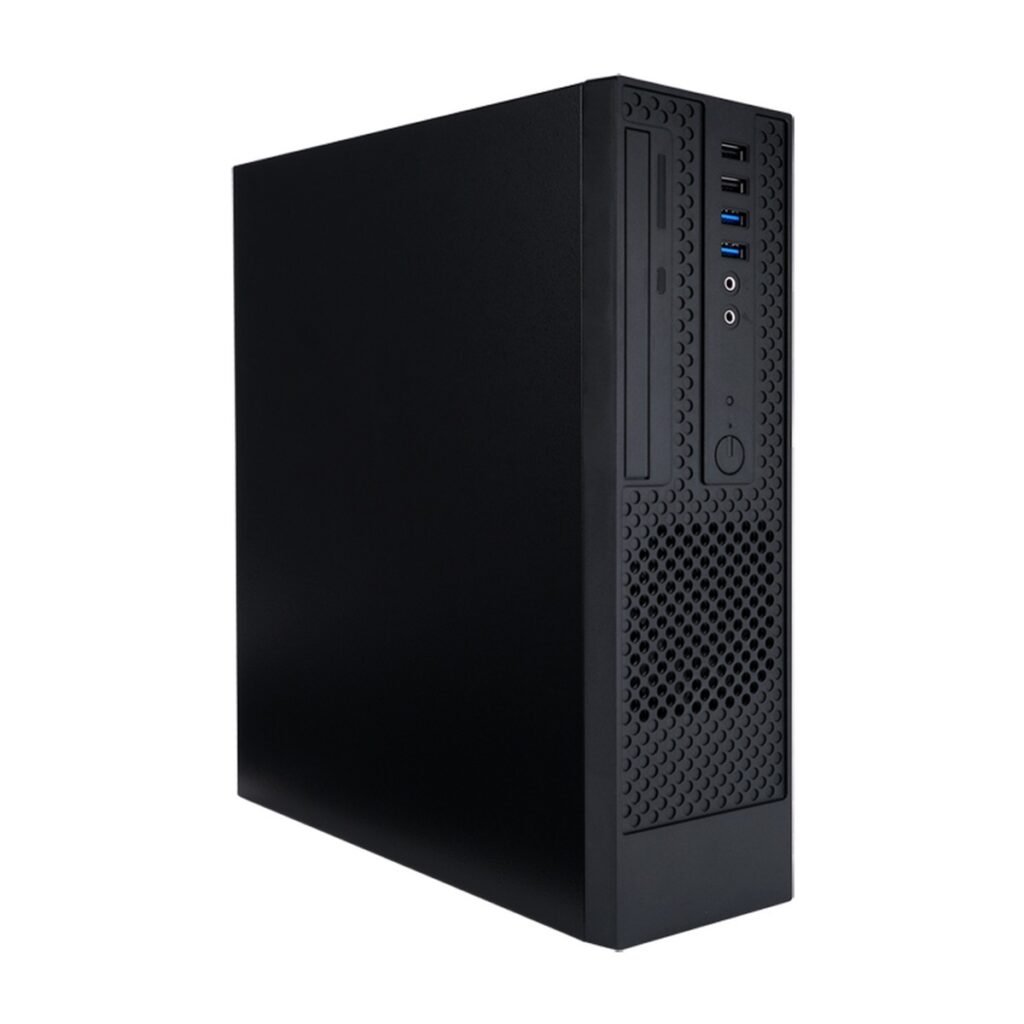

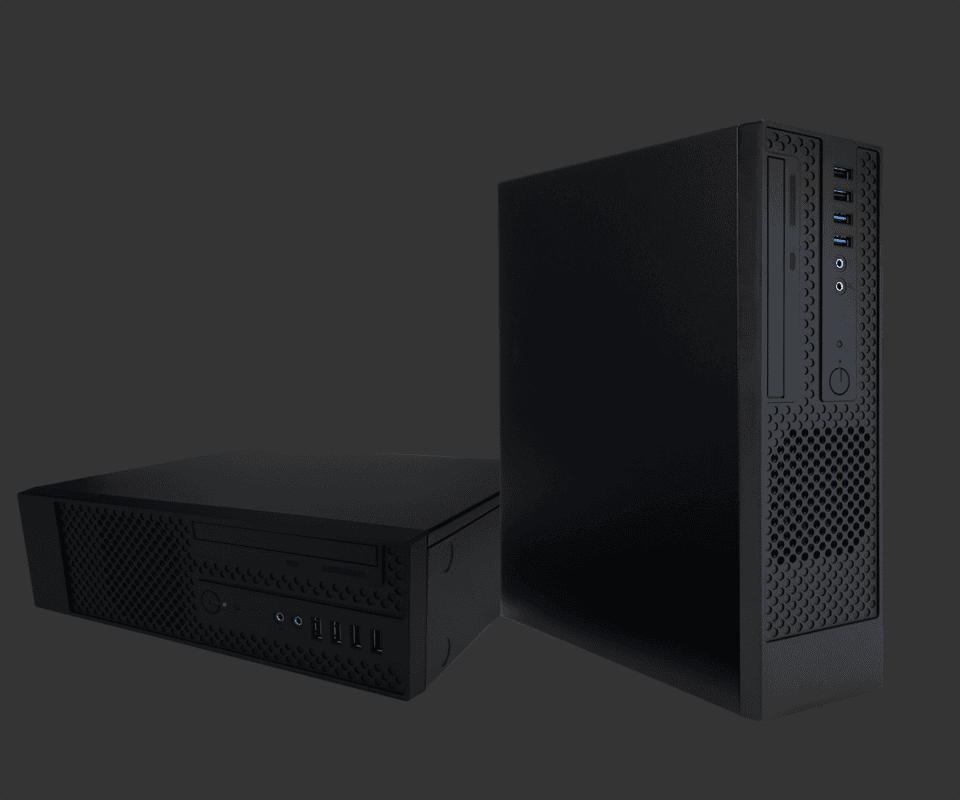

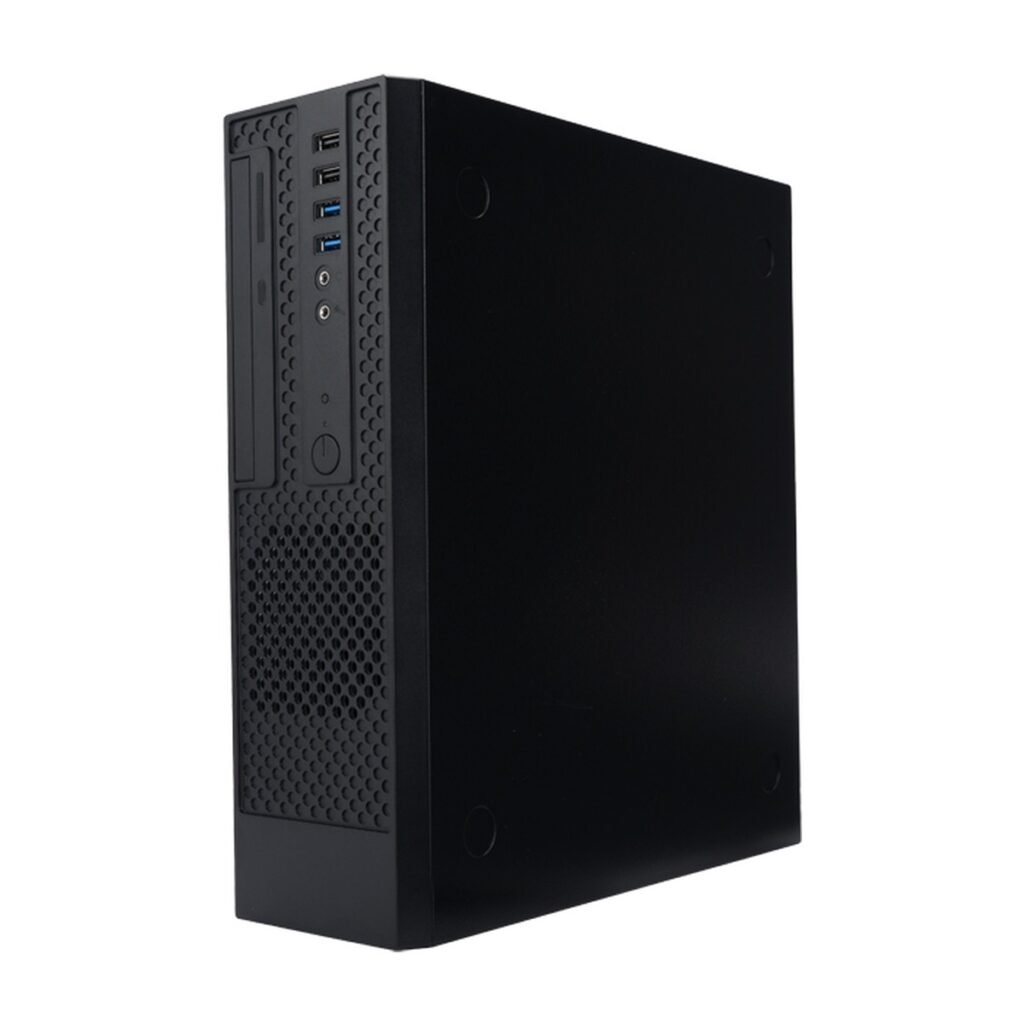

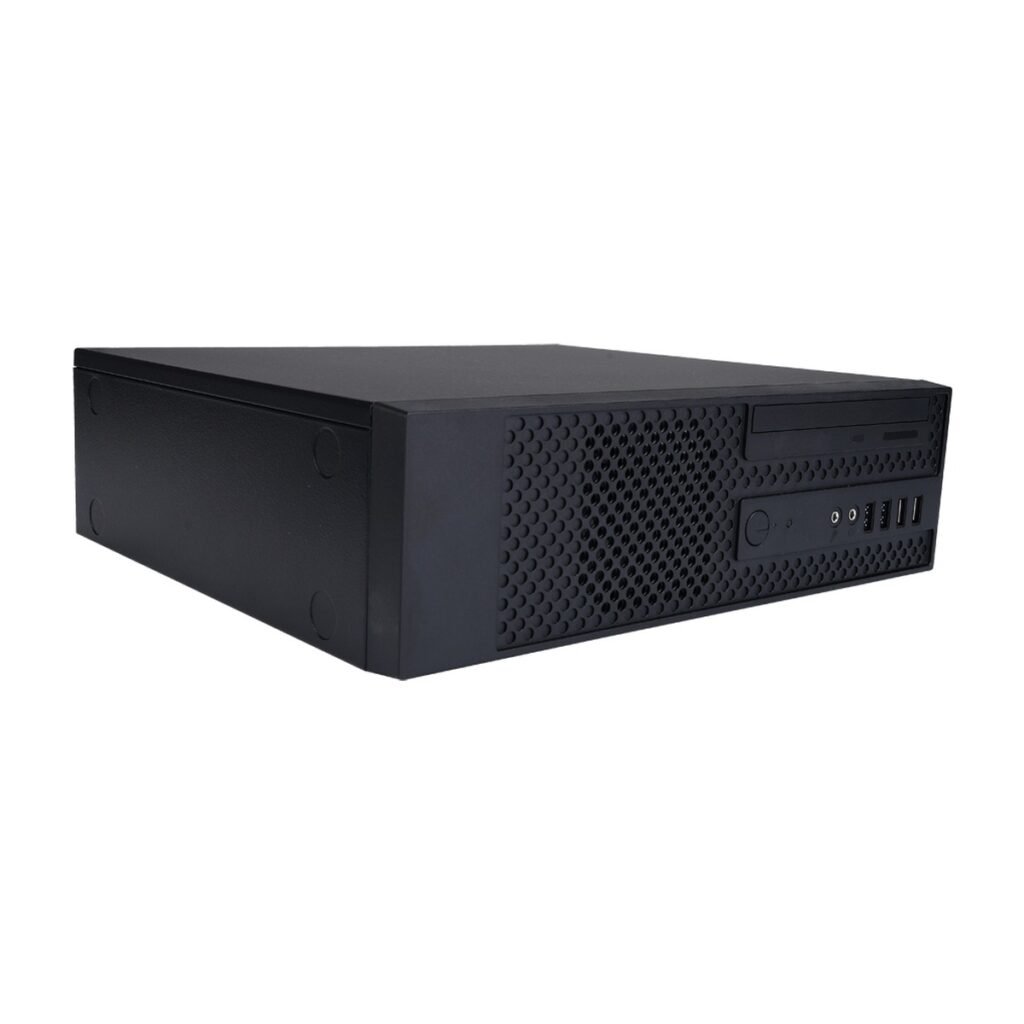

InWin CK709

9L Small Form Factor Efficiently utilizes its 9L compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.
Easy Integration
Superior Performance
Optimal Thermal Performance
Smart Interior Structure Design
Tool-Free Drive Bays and PCI-E Slots
Standard TFX 12V 300W Power Supply

Dimensions	329 × 95 × 297 cm
I/O Expansion Slots	Low Profile Card Slot x 4
Compatibility	Maximum CPU Cooler Height: 45 mm, Maximum CPU Cooler Height: 81 mm, Maximum Graphics Card Length / Width: 187 mm / 80 mm, Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
Thermal Solution	Front: 80x80x15mm PWM Fan up to 25mm thickness
Safety	CE and FCC Class B Requirements, Meets RoHS
Security	Padlock Loop / Kensington Slot
Optional	Card Reader, Chassis Intrusion Switch, Internal Speaker, Type-C
Packing Dimensions	338 x 383 x 148 mm
Shipping Single Packing	171, 20’: 1, 297, 40’ H: 3, 40’: 3, 638
Shipping Pallet Packing	20’: 1, 260, 40’ H: 2, 40’: 2, 520, 940
Cases Size	S.F.F Slim Chassis Ultra Small Form Factor
Colour 1	Black
External Drive Bays	1
Internal Drive Bays	1
Chassis Form Factor	S.F.F Slim Chassis Ultra Small Form Factor
MB Form Factor	Micro-ATX, Mini-ITX
USB Front Ports	USB 3.0 x 2 + USB 2.0 x 2 or USB 3.0 x 2
Audio Front Ports	HD Audio
Power Supply	300W, Standard TFX 12V
Product Dimensions	329 x 95 x 297 mm with Foot Stand, Clip
Liter Volumen	9.0 L
