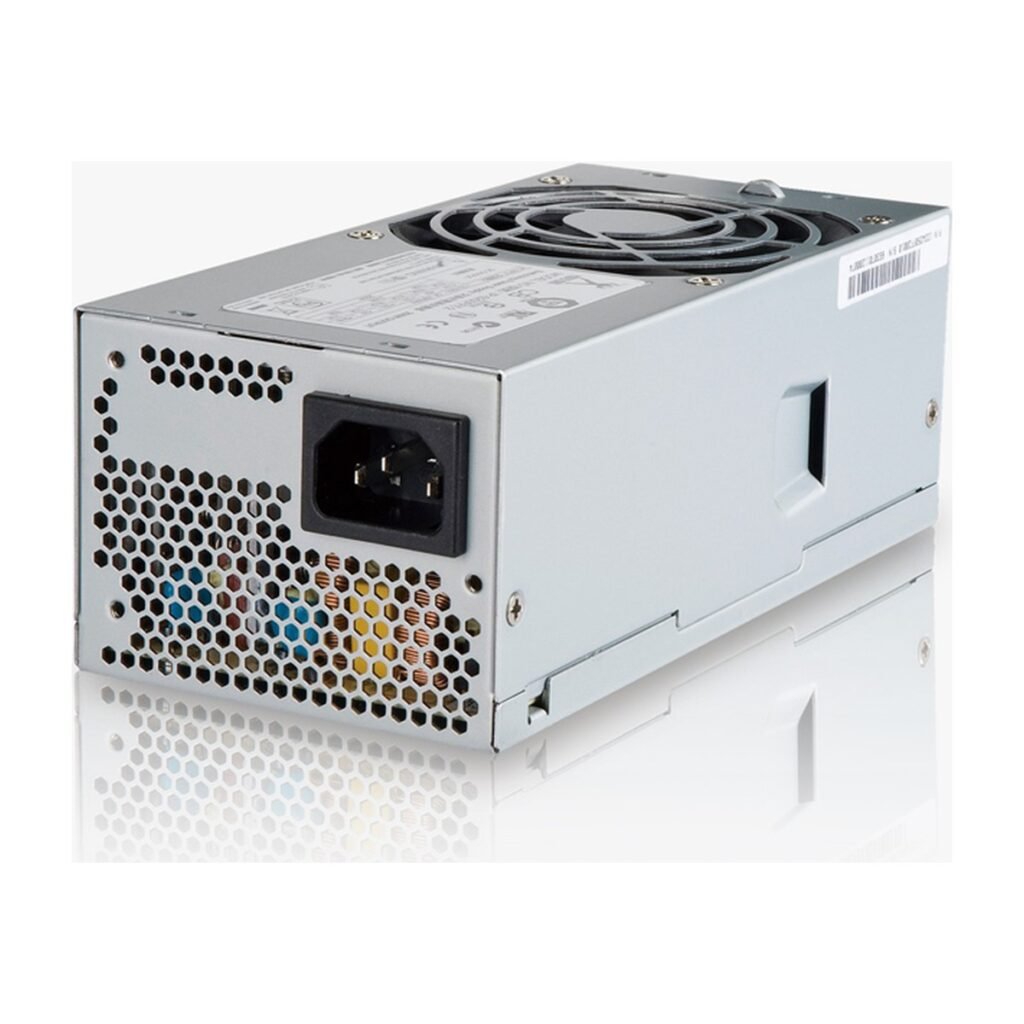

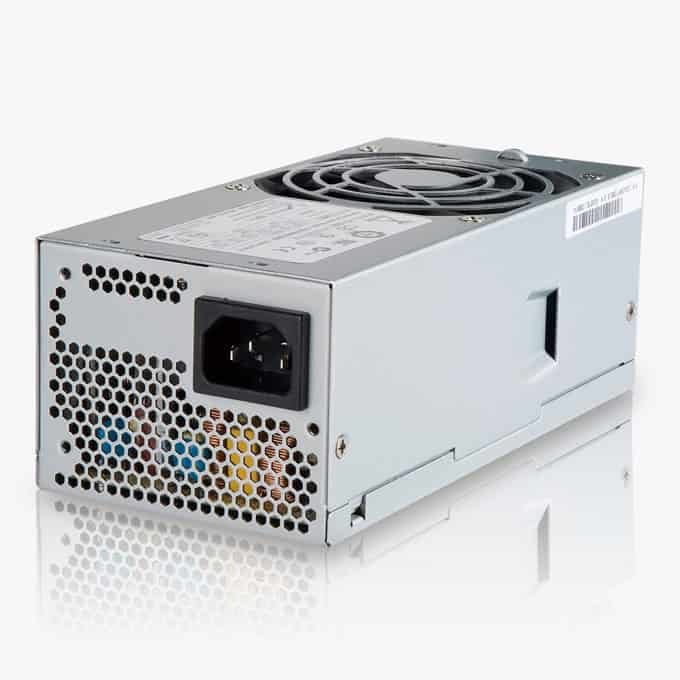

TFX 12V V2.4
This article is listed in these categories:
Single +12V Output Smart Thermal Control to Balance Noise & Cooling 80mm Cooling Fan MTBF 100KHRs @ 25°C per MIL-STD-217D/F Operating Ambient 0°C Minimum to +50°C Maximum ErP Lot 6 Compliant Dimensions: 85(W) X 175(L) X 65(H) mm
| PSU Output | 300W |
|---|---|
| PSU Form Factor | TFX |
| AC Input | 100-240V, 115-230V |
| PSU Dimensions | 65 x 175 x 85 mm |
| Cooling Fan | 80 mm |
| Colour | Silver |
| PFC | active |
| PSU Rating | 80 Plus Gold |
| Efficiency | 91.23% |
| Con Mainpower | 24pin |
| Con 4pin FDD | 1 |
| MOC +12V1 | 25A |
| MoC +5V | 16A |
| MOC +3.3V | 16A |
| MOC -12V | 0.3A |
| MOC 5VSB | 3A |
| MOC MAX1 | 90W |
| MOC MAX2 | 300W |
| MOC MAX3 | 300W |
