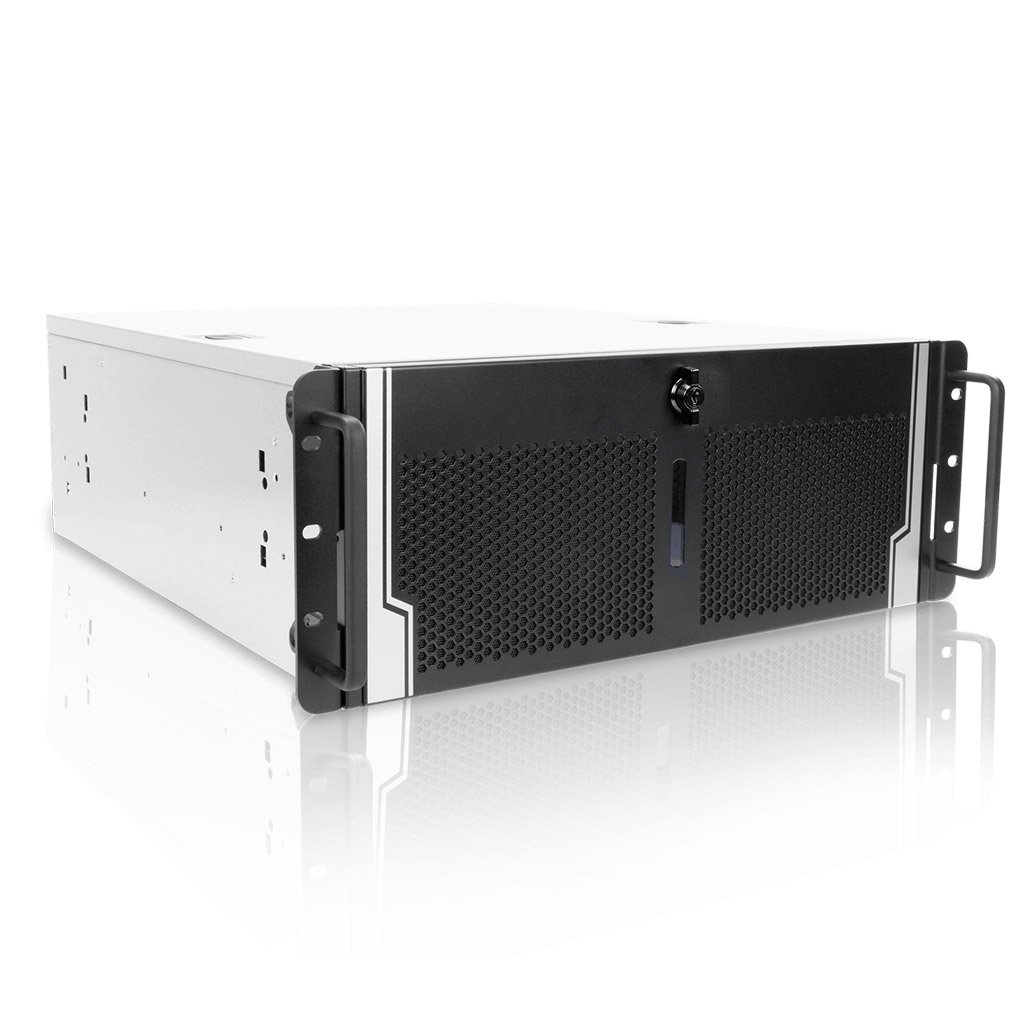

IW-R400-03N
Open-Bay 4U Server Chassis
USB Front Ports
-
MB Form Factor
ATX CEB EEB
Audio Front Ports
-
Detailinformationen
2.5" and 3.5" HDD Compatible with standard PS2 Flexible drive bays configuration for ODD Supports easy-swap rear fan x 2 for upgrade
Power Supply
Form Factor: 80 Plus Platinum CRPS Watt: 550W/800W/1200W/1600W
Product Dimensions
596x 430 x 174.8 mm
- Flexible drive bays configuration for ODD, 2.5″ and 3.5″ HDD
- Supports easy-swap rear fan x 2 for upgrade
- Compatible with standard PS2, mini-redundant power supply and CRPS
- Expandable storage option with InWin storage kit
- GPU holder and adjustable card retainer supporting 350mm dual-slot PCIe cards x 4
- Optional rear fan module for GPU
- Convertible to tower with chassis stands (optional)
- Lockable front door for data security
- Tool-free cover for easy installation and quick maintenance
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Detailinformationen | 2.5" and 3.5" HDD, Compatible with standard PS2, Supports easy-swap rear fan x 2 for upgrade, Flexible drive bays configuration for ODD |
|---|---|
| Serie | |
| Chassis Form Factor | Rackmount Chassis |
| Industry Standard | |
| Cases Size | |
| MB Form Factor | |
| Internal or Rear Drive Bays | 3.5" x 2, 2.5" x 1 |
| External Drive Bays | |
| Internal Drive Bays | |
| Power Supply | Form Factor: 80 Plus Platinum CRPS, Watt: 550W/800W/1200W/1600W |
| Indicators | |
| Front Control Panel | |
| Security | |
| Cooling Fans | 4200RPM, 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 80 x 25mm PWM rear fan x 2 (optional), 4500RPM, 80 x 25mm PWM rear fan x 2 |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Product Dimensions | |
| Packing Dimensions | |
| Weight | |
| Shipping Information | 20': 168pcs, 40' HQ: 400pcs, 40': 350pcs, Single packing with pallets: |
Packaging_
Product Dimensions
596x 430 x 174.8 mm
Package dimensions
757 x 595 x 300mm
