IW-RS436-07
2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis 2.5"/3.5" HDD trays x 36 (optional NVMe trays x 12 4U High-density drawer configuration design for space-saving 80 Plus® Platinum CRPS (optional) and disk support Backplanes with Mini-SAS HD distinguishes U.2 NVMe SSDs) End-to-end 12Gbps SAS host expander High-speed cooling fans for excellent thermal performance Highly efficient 1200W Intel® Xeon Scalable AMD EPYC family compliant OCuLink or Slimline connectors (compatible with PCIe 4.0)
Rackmount Chassis
4U Rackmount Chassis
0
HDD LED ID LED LAN1/LAN2/LAN3/LAN4 LED Power LED system LED
Low-profile PCI slots x 7
Supports 28" ball-bearing slide rail
920 x 610 x 315mm
20': 140pcs 40': 294pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
- Intel® Xeon Scalable & AMD EPYC family compliant
- Backplanes with Mini-SAS HD, OCuLink, or Slimline connectors (compatible with PCIe 4.0)
- End-to-end 12Gbps SAS host, expander, and disk support
- 2.5″/3.5″ HDD trays x 36 (optional NVMe trays x 12, distinguishes U.2 NVMe SSDs)
- 2 x 2.5″ SAS/SATA SSDs for system disks at the rear of the chassis
- Highly efficient 1200W, 80 Plus® Platinum CRPS (optional)
- High-speed cooling fans for excellent thermal performance
- 4U High-density drawer configuration design for space-saving
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 659,3 × 448,5 × 174,5 cm |
|---|---|
| Power Supply | |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| Chassis Form Factor | Rackmount Chassis |
| External Drive Bays | |
| MB Form Factor | |
| Chassis Indicator | HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED |
| Chassis Front Control | ID SW, NMI, Power on/off, reset, USB3.0x2 |
| Serie | |
| SUB - Serie | NVME Storage Server |
| Industry Standard | |
| Internal Drive Bays | |
| Indicators | HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED |
| Front Control Panel | |

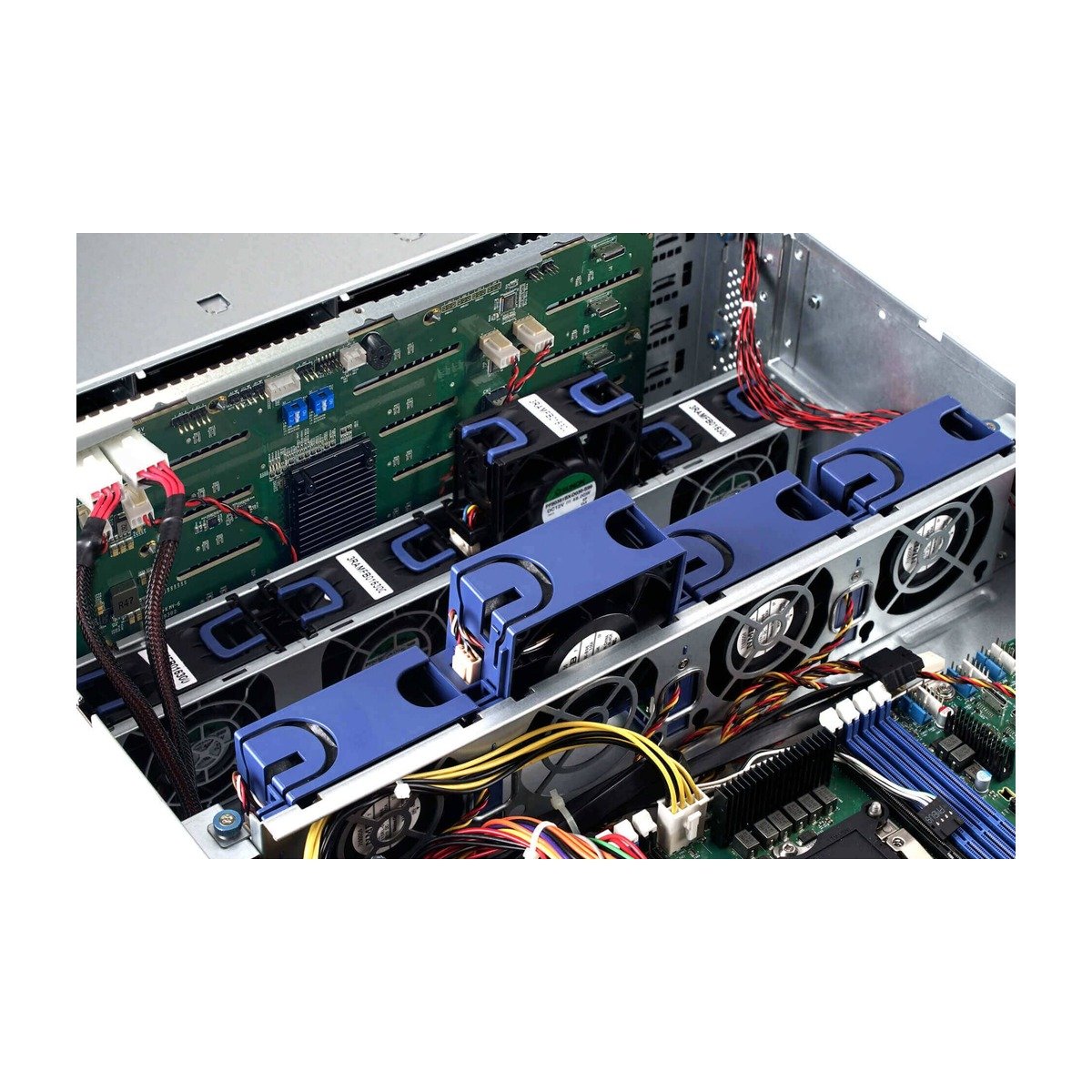

| Cooling Fans | 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 12000RPM Modular design with anti-vibration, 80 x 38mm PWM hot-swap top fans x 4, 8300RPM 80 x 38mm PWM hot-swap bottom fans x 4 |
| 12Gbps Expander Module | |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | |
| Backplane Type-1 Specs | |
| Detailinformationen | 2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis, 2.5"/3.5" HDD trays x 36 (optional NVMe trays x 12, 4U High-density drawer configuration design for space-saving, 80 Plus® Platinum CRPS (optional), and disk support, Backplanes with Mini-SAS HD, distinguishes U.2 NVMe SSDs), End-to-end 12Gbps SAS host, High-speed cooling fans for excellent thermal performance, Highly efficient 1200W, Intel® Xeon Scalable AMD EPYC family compliant, or Slimline connectors (compatible with PCIe 4.0), expander, OCuLink |
Packaging_
Product Dimensions HWD with Frontpanel
Package dimensions
