IW-RF100
1U Short Depth Rackmount Server Chassis
Detailinformationen
-
Serie
1U
Chassis Form Factor
Rackmount Chassis
Industry Standard
EIA-RS310D
Cases Size
1U Rackmount Chassis
MB Form Factor
ATX Mini-ITX
Internal or Rear Drive Bays
2.5" x 1 3.5" x 1 2.5" x 2
External Drive Bays
0
Internal Drive Bays
4
Power Supply
Form Factor: Flex Watt: up to 265W or 315W
Indicators
HDD LAN activity LEDs Power status
Front Control Panel
Power switch system reset USB 3.0 x 2
Security
-
Cooling Fans
40 x 28mm PWM fan x 3 (pre-installed x 2) 60 x 25mm PWM rear fan x 2 (optional) 80 x 25mm PWM front fan x 1
Expansion Slots
Full height PCI slot x 1 (via riser card)
Material
Material: SGCC Thickness: 1.0mm
Rail Kit
Supports 20" friction slide rail
Product Dimensions
365.9 x 430 x 43.5 mm
Packing Dimensions
560 x 500 x 135mm
Weight
Gross weight: 4.2kg Net weight: 3.4kg
Shipping Information
20': 640pcs 40' HQ: 1360pcs 40': 1280pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
- Compact size for ATX (12″ x 10″) motherboard

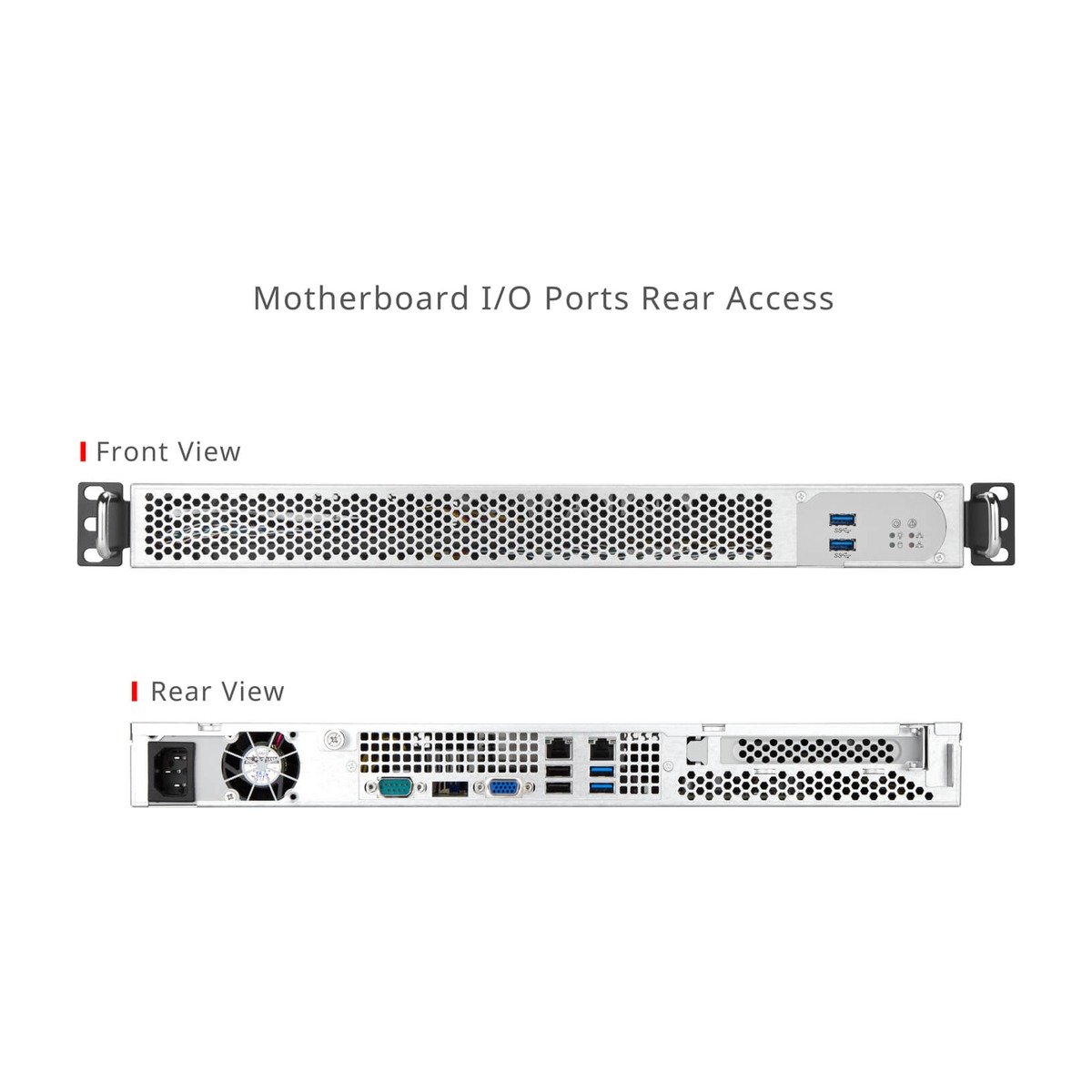

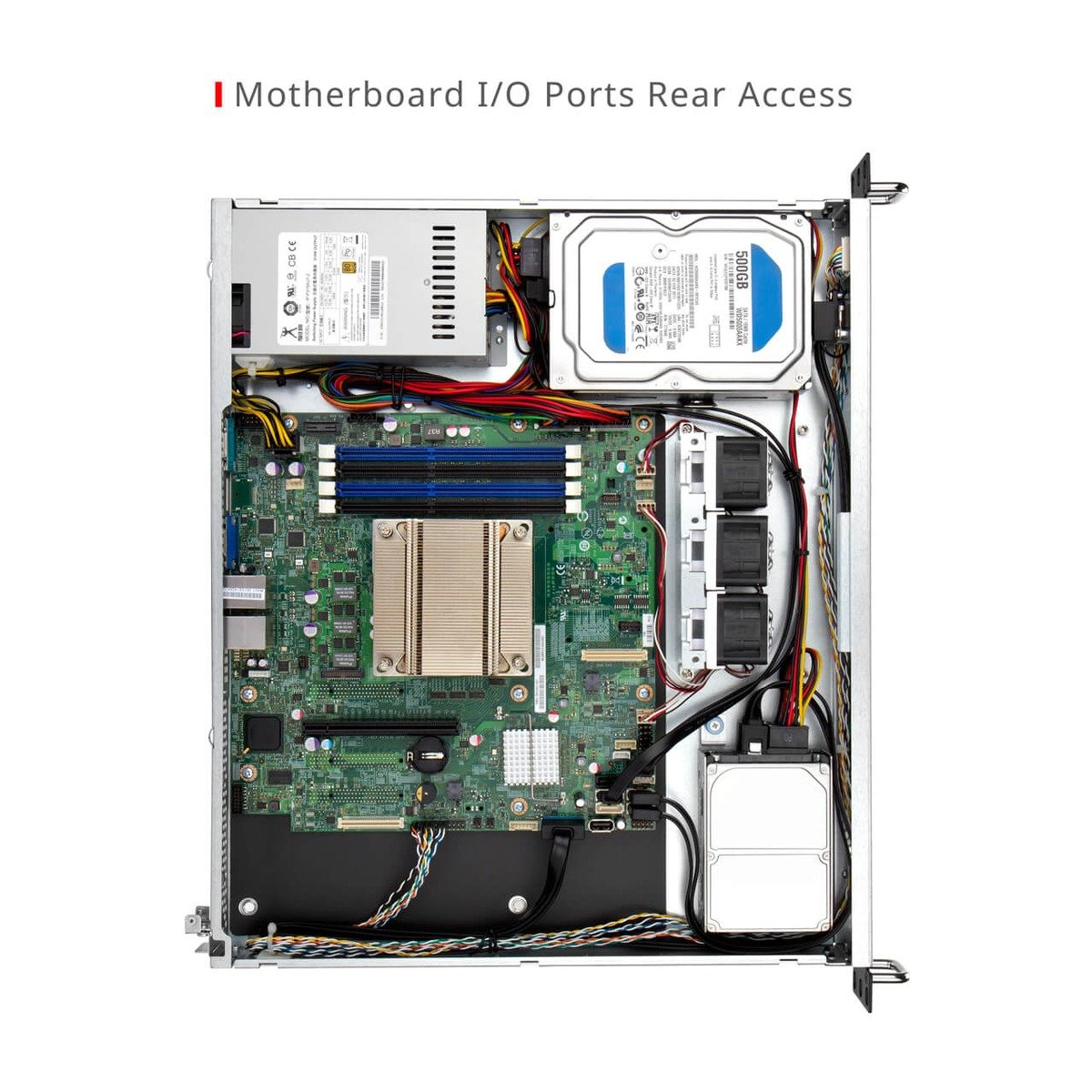

- Reversible design allowing the M/B ports to be presented at the front or rear of the chassis
- Rack ears can be fitted to both front and rear of the chassis
- Power supply can be swapped with the front panel location
- Tool-free 3.5″ & 2.5″ HDD cage design
- Supports up to 40mm PWM x 3 with anti-vibration
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 365,9 × 430 × 43,5 cm |
|---|---|
| Power Supply | |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| External Drive Bays | |
| Serie | |
| Industry Standard | |
| Internal or Rear Drive Bays | 2.5" x 1 3.5" x 1, 2.5" x 2 |
| Internal Drive Bays | |
| Indicators | |
| Front Control Panel | |
| Cooling Fans | 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 40 x 28mm PWM fan x 3 (pre-installed x 2) |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | 20': 640pcs, 40' HQ: 1360pcs, 40': 1280pcs, Single packing with pallets: |
| Chassis Form Factor | Rackmount Chassis |
| MB Form Factor | |
| Chassis Indicator | HDD, LAN activity LEDs, Power status |
| Chassis Front Control | Power switch, system reset, USB 3.0 x 2 |
Packaging_
Product Dimensions HWD with Frontpanel
-
Package dimensions
-
