IW-RS112-08

1U NVMe Hybrid Storage Server

USB Front Ports

MB Form Factor

ATX CEB EEB

Audio Front Ports

Detailinformationen

supports max. NVMe SSDs x 4

Power Supply

750W 1U redundant PSU 80 Plus Platinum

Product Dimensions

676 x 438 x 43.5 mm

Zur Erstellung einer Wunschliste bitte einloggen.

Intel® Xeon Scalable & AMD EPYC family compliant
Hybrid backplane selections with Mini-SAS HD and Slimline connectors
Supports PCIe 4.0 with backplane Slimline (SFF-8654 x8) slots

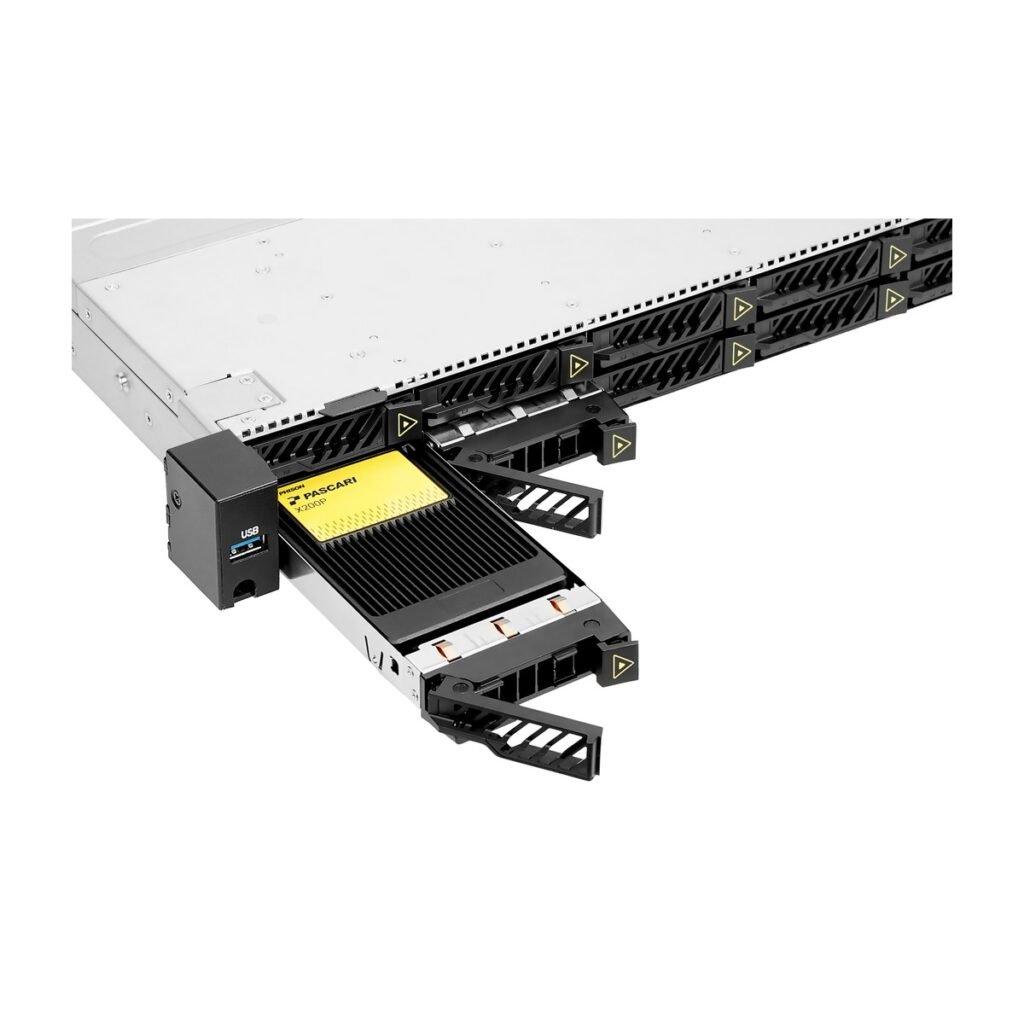

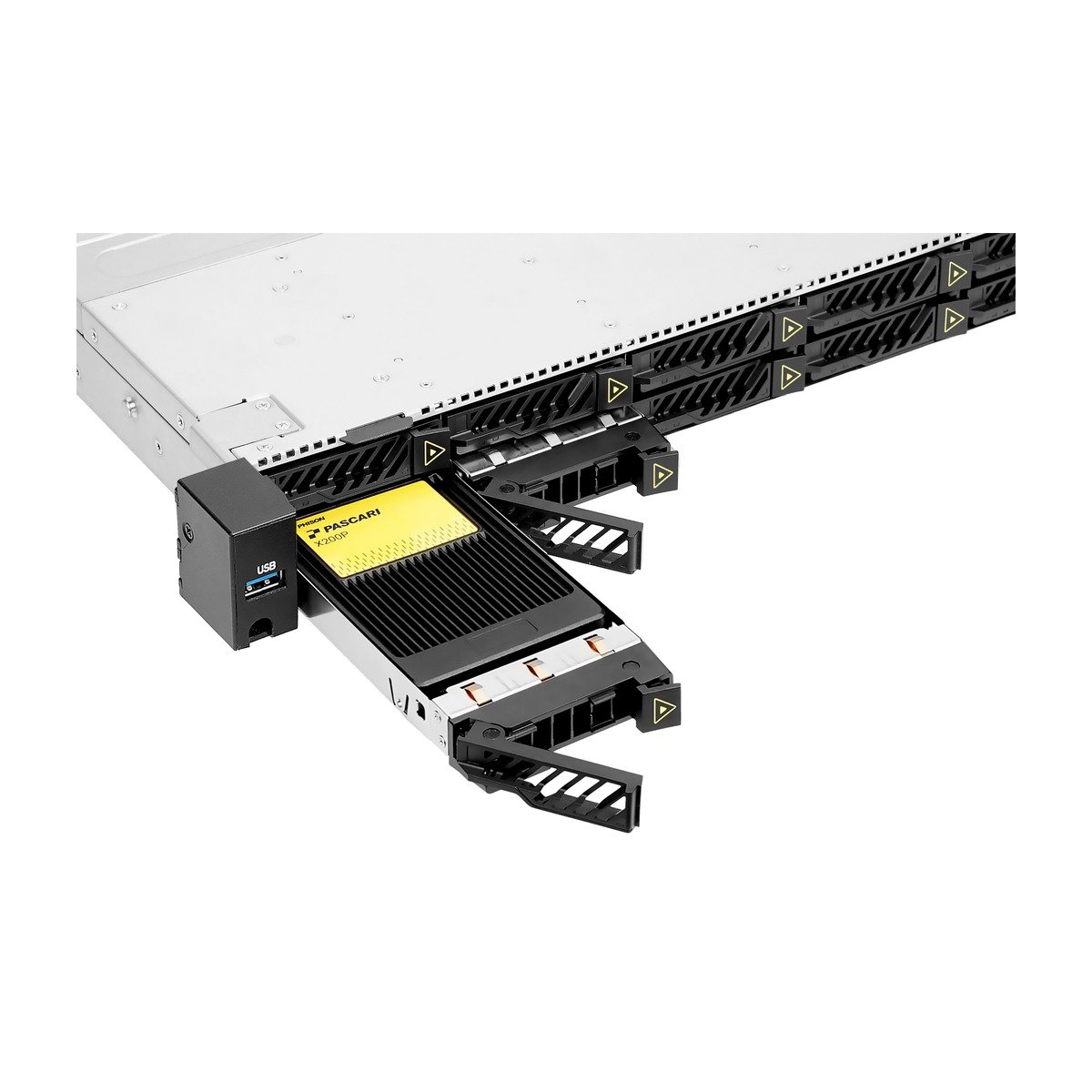

Compact bay deployment, supports max. NVMe SSDs x 4, max. 2.5″ (15mm) trays x 12
Large cooling area within the tray front panel and six easy-swap fans bring excellent airflow
Supports full-height PCIe slot x 1; One riser card included in accessories box
Custom I/O shield service offered for chassis backplate to match specific motherboards with SGCC material

Dieser Artikel ist in diesen
Kategorien gelistet:

Detail-Informationen_

Detailinformationen	supports max. NVMe SSDs x 4
Serie	1U
Chassis Form Factor	Rackmount Chassis
Industry Standard	EIA-RS310D
Cases Size	1U Rackmount Chassis
MB Form Factor	CEB, EEB, ATX
External Drive Bays	16
Internal Drive Bays	0
Power Supply	750W 1U redundant PSU, 80 Plus Platinum
Indicators	HDD LED, ID LED, LAN1/LAN2 LED, Power LED, system LED
Front Control Panel	NMI, Reset, ID SW, Power on/off, USB 3.0 x 1
Cooling Fans	60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 21500RPM modular design with anti-vibration, 40 x 56mm PWM easy-swap fans x 6
Expansion Slots	Full-Height PCIe slot x 1 with riser card (Left-facing 90 degree design)
Material	Material: SGCC, Thickness: 1.0mm
Rail Kit	Supports 28" tool-less ball-bearing slide rails
Product Dimensions	676 x 438 x 43.5 mm
Packing Dimensions	676 x 438 x 435mm
Weight	Gross weight: 12.97kg, Net weight: 10.6kg
Shipping Information	20': 200pcs, 40' HQ: 552pcs, 40': 460pcs, Single packing with pallets:

Product Dimensions

676 x 438 x 43.5 mm

Package dimensions

676 x 438 x 435mm
