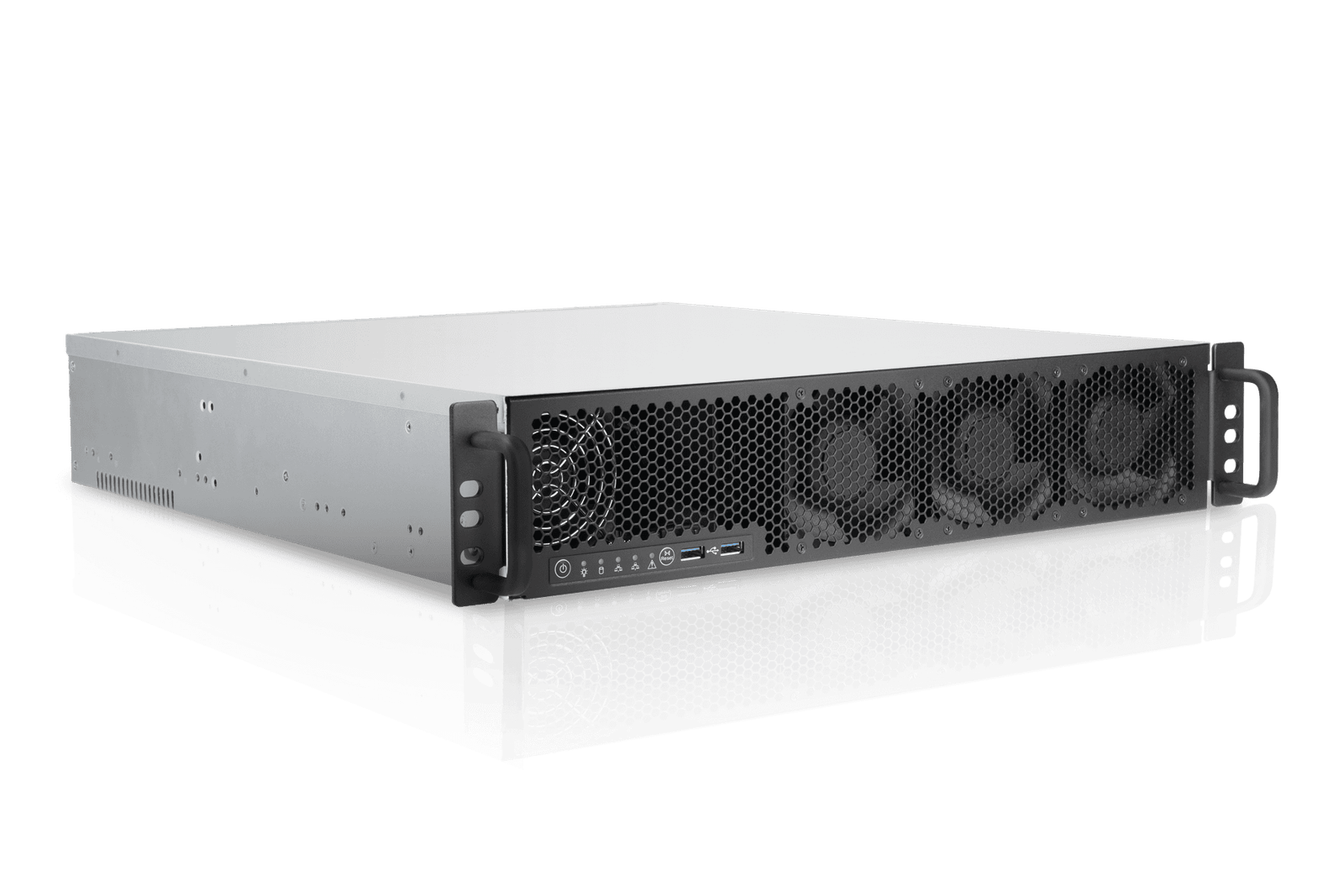

IW-RL200
ensuring dual efficient heat dissipation Short-depth edge servers ideal for limited environments
Rackmount Chassis
2U Rackmount Chassis
2.5" x 2
2
HDD LED LAN1/LAN2 LED Power LED system LED
Full height PCI slots x 3
Supports 23" ball-bearing slide rails
690 x 610 x 218 mm
Single packing with pallets: • 20': 192 pcs • 40': 400 pcs • 40'HQ: 500 pcs
Zur Erstellung einer Wunschliste bitte einloggen.
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 484 × 432,4 × 88 cm |
|---|---|
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W/2000W |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| External Drive Bays | |
| Chassis Indicator | HDD LED, LAN1/LAN2 LED, Power LED, system LED |
| Chassis Front Control | Power on/off, system reset, USB 3.0 x 2 |
| Serie | |

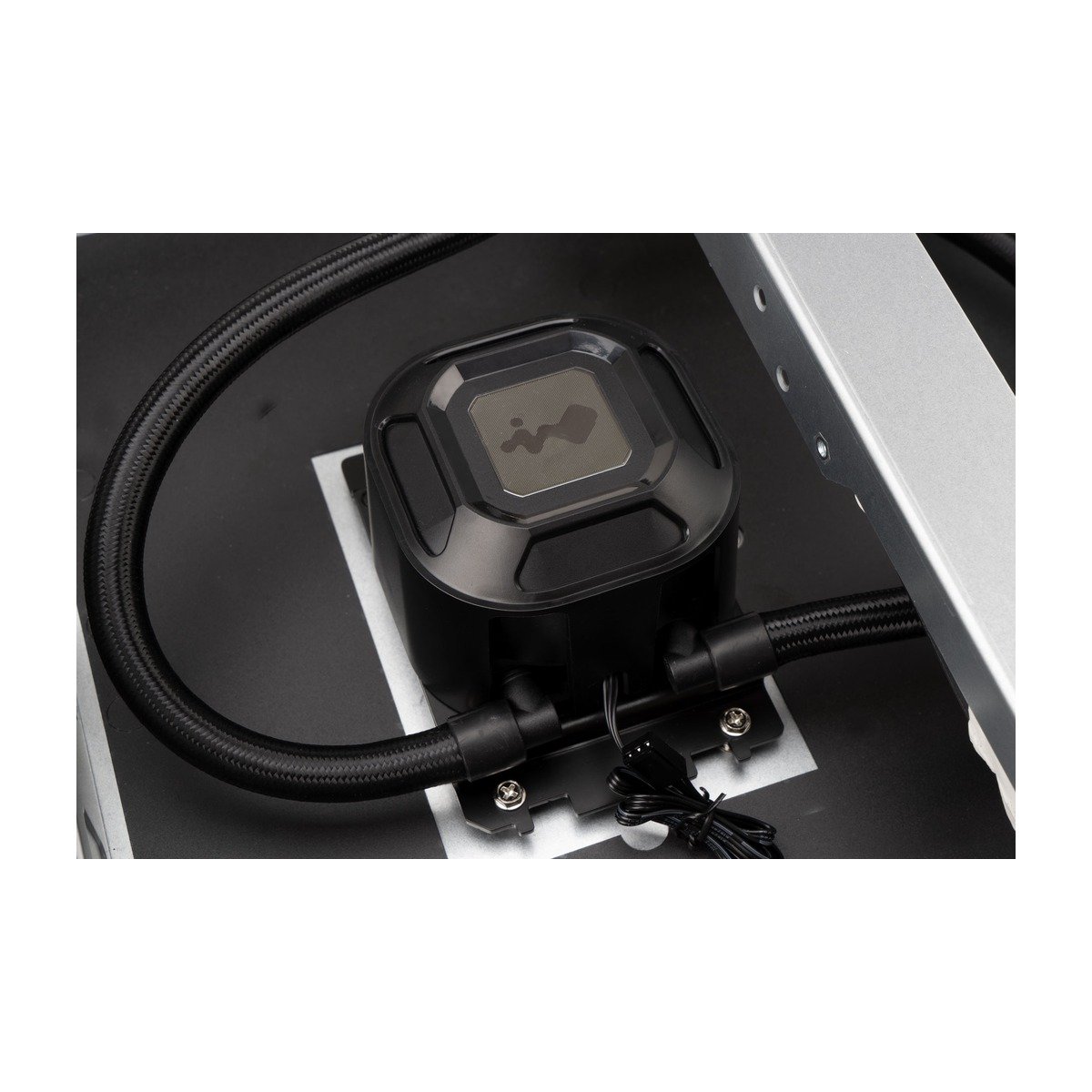

| SUB - Serie | Liquid Cooled Rackmount Chassis |
| Industry Standard | |
| Internal or Rear Drive Bays | 2.5" x 2 |
| Internal Drive Bays | |
| Indicators | |
| Front Control Panel | |
| Cooling Fans | 10000 RPM, 60 x 25mm PWM rear fan x 2 (optional), 6pin, 80 x 25mm PWM front fan x 1, 80 x 38 mm PWM front fan x 1 (optional) |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | Single packing with pallets: • 20': 192 pcs • 40': 400 pcs • 40'HQ: 500 pcs |
| Detailinformationen | ensuring dual efficient heat dissipation Short-depth edge servers ideal for limited environments |
| Chassis Form Factor | Rackmount Chassis |
| MB Form Factor |
