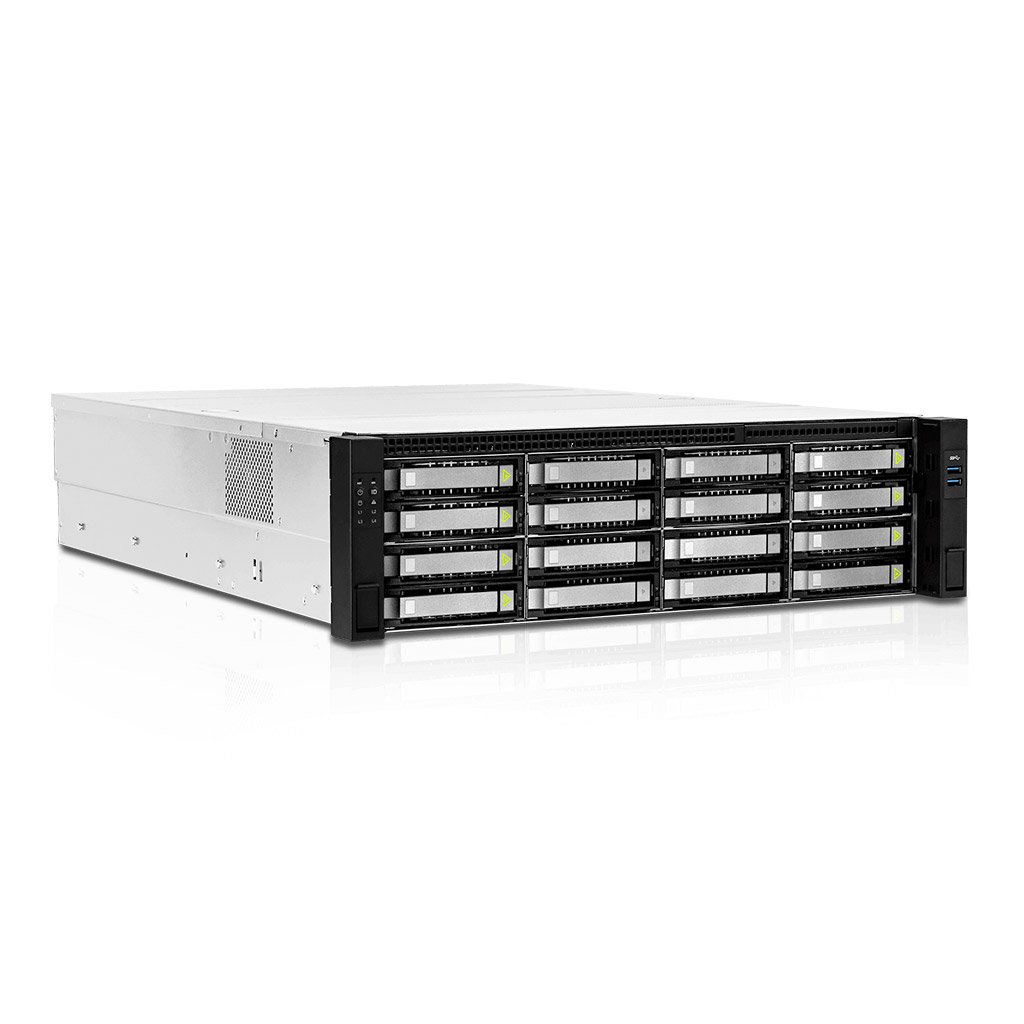

IW-RN316-04
Rackmount Chassis
3U Rackmount Chassis
Internal: 2.5" x 2 for each node supports 7mm SSD
2
ID LED LAN1/LAN2/LAN3/LAN4 LED Per node: Power LED system LED
Per node: • Low-profile PCI slot x 2 • Full-height PCI slot x1
Supports 20" or 28" tool-less ball-bearing slide rail
917 x 610 x 286mm
Single packing with pallets: • 20': 120pcs • 40': 252pcs • 40' HQ: 294pcs
Zur Erstellung einer Wunschliste bitte einloggen.
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 699,55 × 440 × 130,8 cm |
|---|---|
| Power Supply | Supports 1200W 80 Plus Platinum CRPS with PDB cable management |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| Chassis Form Factor | Rackmount Chassis |
| External Drive Bays | |
| MB Form Factor | |
| Chassis Indicator | ID LED, LAN1/LAN2/LAN3/LAN4 LED, Per node: Power LED, system LED |
| Chassis Front Control | ID SW, NMI, Per node: Power on/off, reset |
| Serie | |
| SUB - Serie | Dual Node Rackmount Chassis |
| Internal or Rear Drive Bays | Internal: 2.5" x 2 for each node, supports 7mm SSD |
| Internal Drive Bays | |
| Indicators | ID LED, LAN1/LAN2/LAN3/LAN4 LED, Per node: Power LED, system LED |
| Front Control Panel | |
| Backplane Type-1 | • Host: Mini-SAS HD (SFF-8643) with expander x 3 • HDD: SAS/SATA x 16 |
| Cooling Fans | 16000RPM, 60 x 25mm PWM rear fan x 2 (optional), 60 x 38mm PWM fan x 4, 80 x 25mm PWM front fan x 1, Modular design with anti-vibration, Per node: |
| 12Gbps Expander Module | |
| Expansion Slots | Per node: • Low-profile PCI slot x 2 • Full-height PCI slot x1 |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | Single packing with pallets: • 20': 120pcs • 40': 252pcs • 40' HQ: 294pcs |
| Backplane Type-1 Specs | |
| HDD / SSD Interface | SAS/SATA x 16 |
Packaging_
Product Dimensions HWD with Frontpanel
Package dimensions
