IW-RN424-04
Rackmount Chassis
4U Rackmount Chassis
2.5" x 2 for each node supports 7mm SSD
2
ID LED LAN1/LAN2/LAN3/LAN4 LED Per node: Power LED system LED
Per node: low-profile PCI slot x 7
Supports 30" tool-less ball-bearing slide rail
970 x 610 x 350mm
20': 168pcs 40' HQ: 416pcs 40': 364pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
- Optimized performance for each node

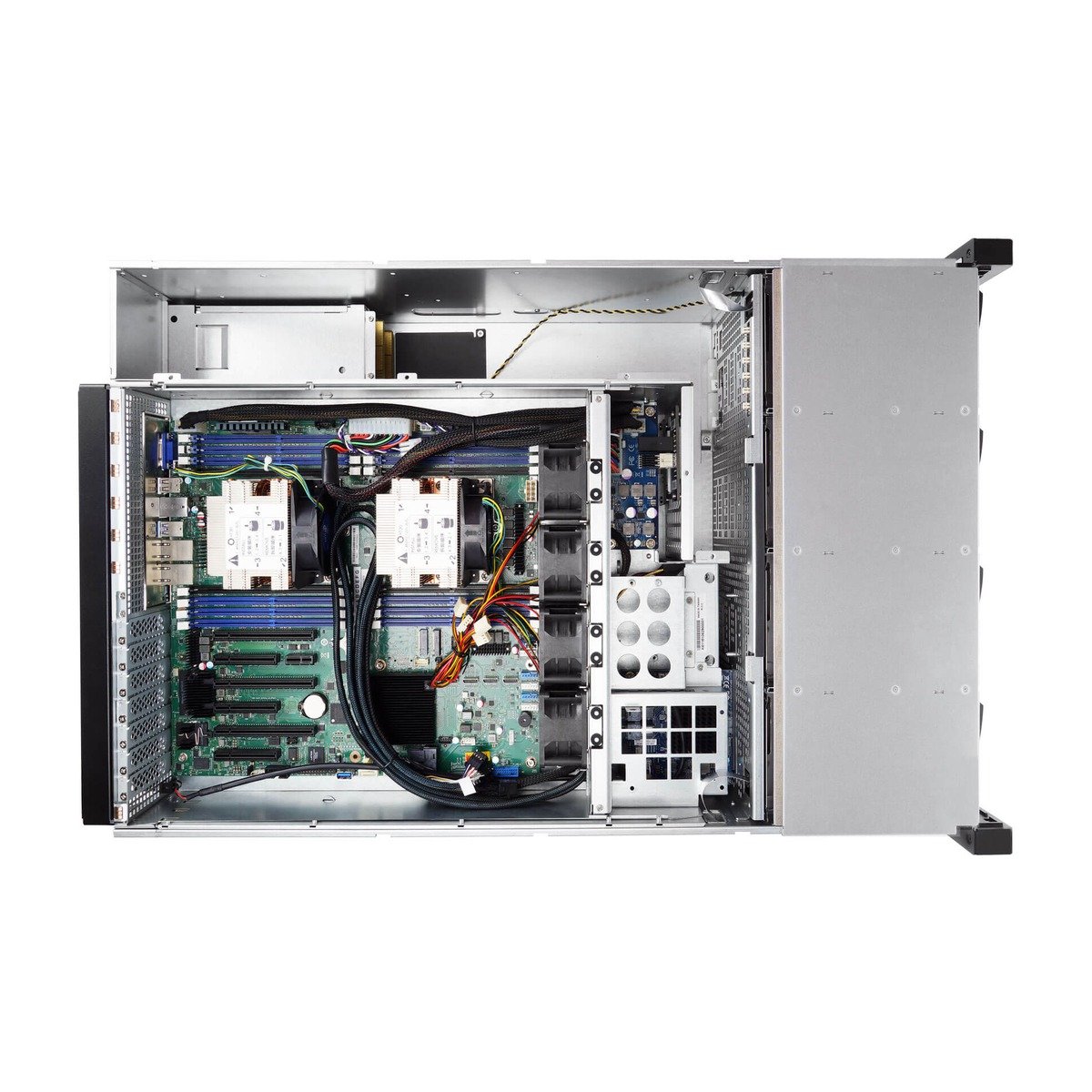

- Easy maintenance and high availability with two hot-swappable system nodes
- Supports SAS 12Gbps via single expander for each node

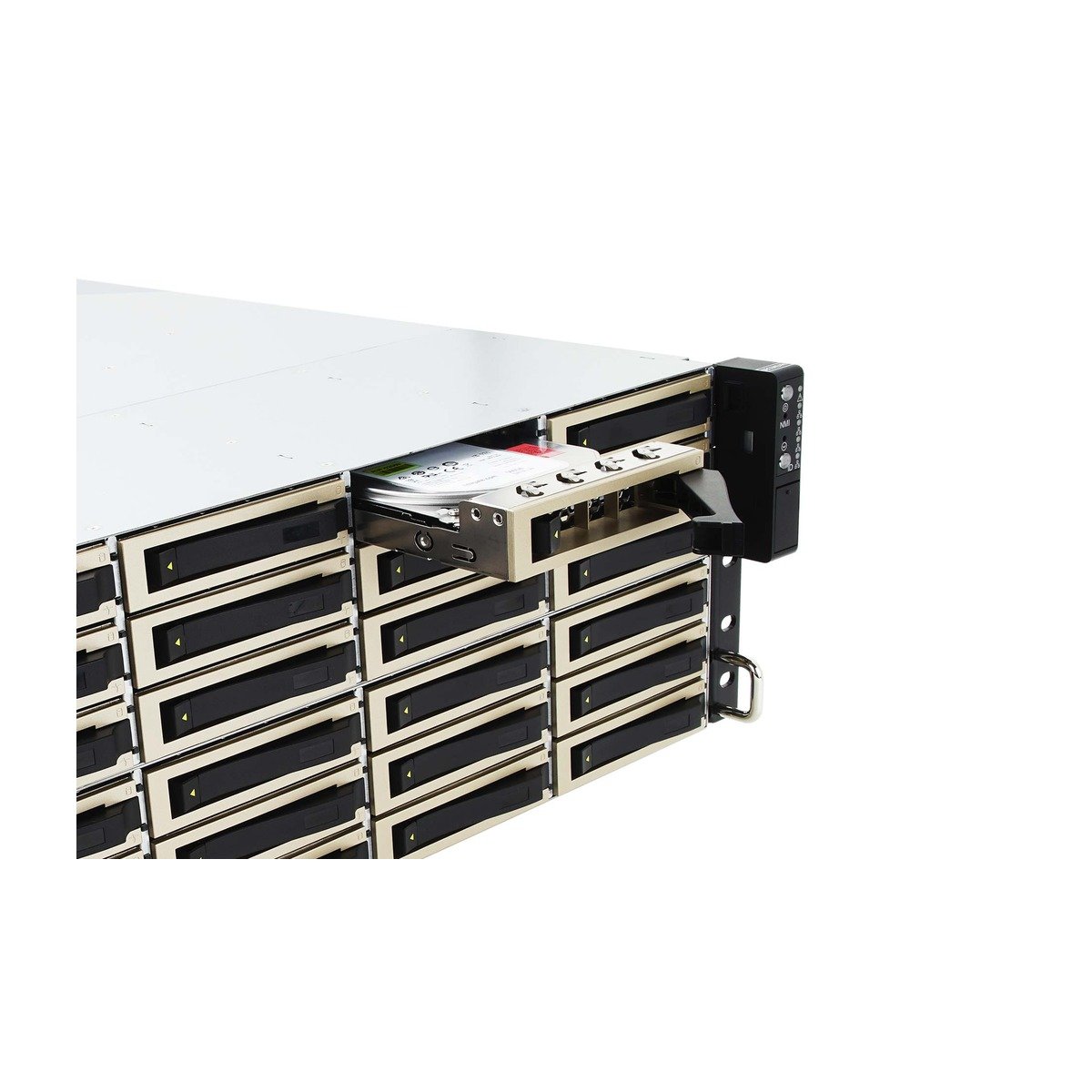

- Tool-less design for 3.5″ HDD carrier
- Compatible with standard form factor motherboard
- Supports tool-less slide rail
- Supports high-efficiency CRPS power supply
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 705,3 × 449,5 × 174,2 cm |
|---|---|
| Power Supply | |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| Chassis Form Factor | Rackmount Chassis |
| External Drive Bays | |
| MB Form Factor | |
| Chassis Indicator | ID LED, LAN1/LAN2/LAN3/LAN4 LED, Per node: Power LED, system LED |
| Chassis Front Control | ID SW, NMI, Per node: Power on/off, reset |
| Serie | |
| SUB - Serie | Dual Node Rackmount Chassis |
| Industry Standard | |
| Internal or Rear Drive Bays | 2.5" x 2 for each node, supports 7mm SSD |
| Internal Drive Bays | |
| Indicators | ID LED, LAN1/LAN2/LAN3/LAN4 LED, Per node: Power LED, system LED |
| Front Control Panel | |
| Backplane Type-1 | HDD: SAS/SATA x 24, Host: Mini-SAS HD (SFF-8643) with expander x 3 |
| Cooling Fans | 16000RPM, 60 x 25mm PWM rear fan x 2 (optional), 60 x 38mm PWM fan x 4, 80 x 25mm PWM front fan x 1, Modular design with anti-vibration, Per node: |
| 12Gbps Expander Module | |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | 20': 168pcs, 40' HQ: 416pcs, 40': 364pcs, Single packing with pallets: |
| Backplane Type-1 Specs |
Packaging_
Product Dimensions HWD with Frontpanel
Package dimensions
