| Detailinformationen |

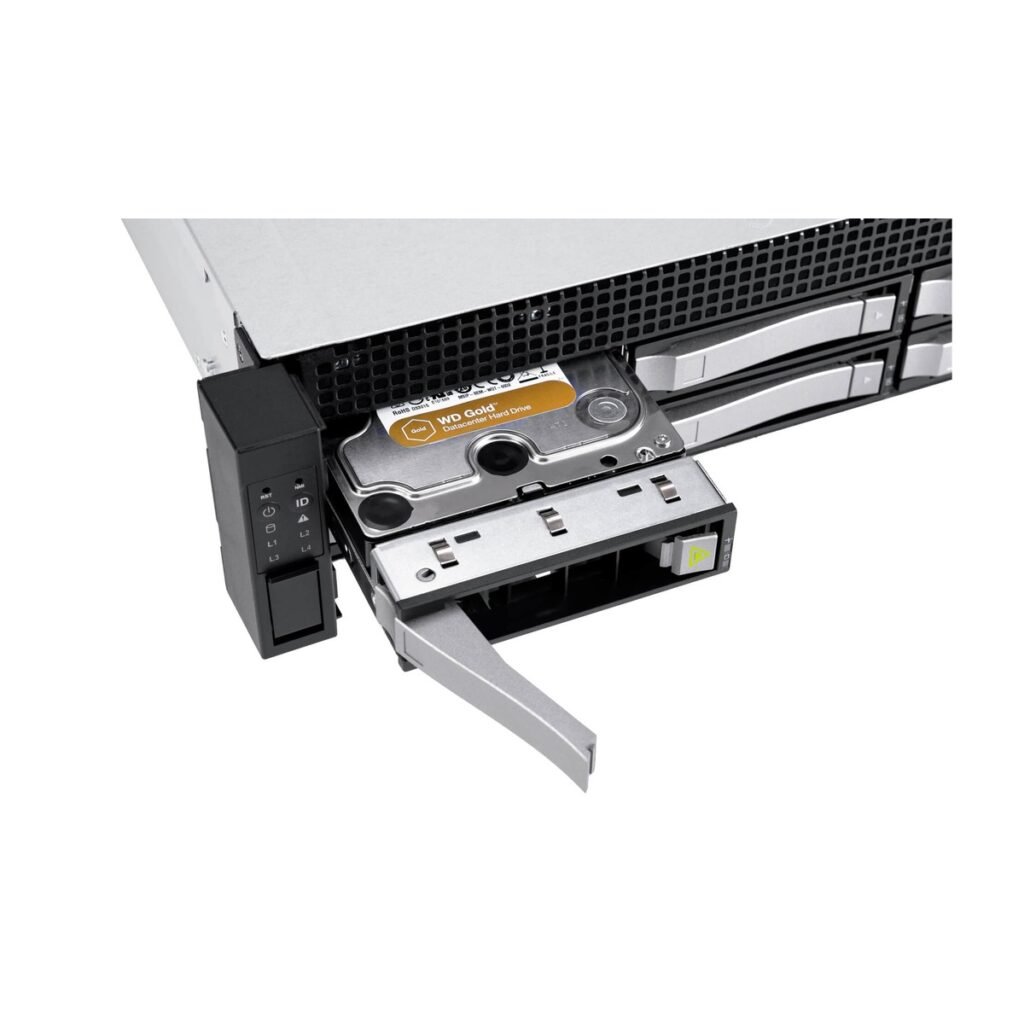

2.5"/3.5" HDD trays x 8 (optional NVMe trays x 4, 80 Plus® Platinum CRPS (optional), Backplanes with Mini-SAS HD or OCuLink connectors (compatible with PCIe 4.0), High-speed cooling fans for excellent thermal performance, Intel® Xeon Scalable AMD EPYC family compliant, Supports low-profile PCle slots x 7
|
| Serie |
2U
|
| Chassis Form Factor |
Rackmount Chassis
|
| Industry Standard |
EIA-RS310D
|
| Cases Size |
2U Rackmount Chassis
|
| MB Form Factor |
CEB, EEB, ATX
|
| Internal or Rear Drive Bays |
Internal 2.5" x 3 or x 4 (via slim ODD conversion tray)
|
| External Drive Bays |
10
|
| Internal Drive Bays |
3
|
| Power Supply |
Form Factor: 80 Plus Platinum CRPS, Watt: 550W /800W
|
| Indicators |
ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED
|
| Front Control Panel |
NMI, Reset, ID SW, Power on/off, USB3.0 x 2
|
| Cooling Fans |
12000RPM, 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, Modular design with anti-vibration, 80 x 38mm PWM hot-swap fans x 4
|
| Expansion Slots |
Low-profile PCIe slots x 7
|
| Material |
Material: SGCC, Thickness: 1.2mm
|
| Rail Kit |
Supports 28" tool-less ball-bearing slide rails
|
| Product Dimensions |
660 x 448 x 87.5 mm
|
| Packing Dimensions |
905 x 610 x 228mm
|
| Weight |
Gross weight: 16.56kg, Net weight: 13.26kg
|
| Shipping Information |
20': 160pcs, 40' HQ: 378pcs, 40': 336pcs, Single packing with pallets:
|
