| Dimensions |
660 × 448 × 87,5 cm |
| Power Supply |
Form Factor: 80 Plus Platinum CRPS, Watt: 550W/800W/1200W/1600W
|
| Product Dimensions |
660 x 448 x 87.5 mm
|
| Packing Dimensions |
845 x 595 x 223mm
|
| Cases Size |
2U Rackmount Chassis
|
| Chassis Form Factor |
Rackmount Chassis
|
| External Drive Bays |
14
|
| MB Form Factor |
CEB, EEB, ATX
|
| Chassis Indicator |
HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED
|
| Chassis Front Control |
ID SW, NMI, Power on/off, reset, USB 3.0 x 2
|
| Serie |
2U
|
| Industry Standard |
EIA-RS310D
|
| Internal Drive Bays |
0
|
| Indicators |
HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED
|
| Front Control Panel |
NMI, Reset, ID SW, Power on/off, USB 3.0 x 2
|
| Backplane Type-1 |
HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4, Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4
|
| Backplane Type-2 |
HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4, Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4
|
| Cooling Fans |

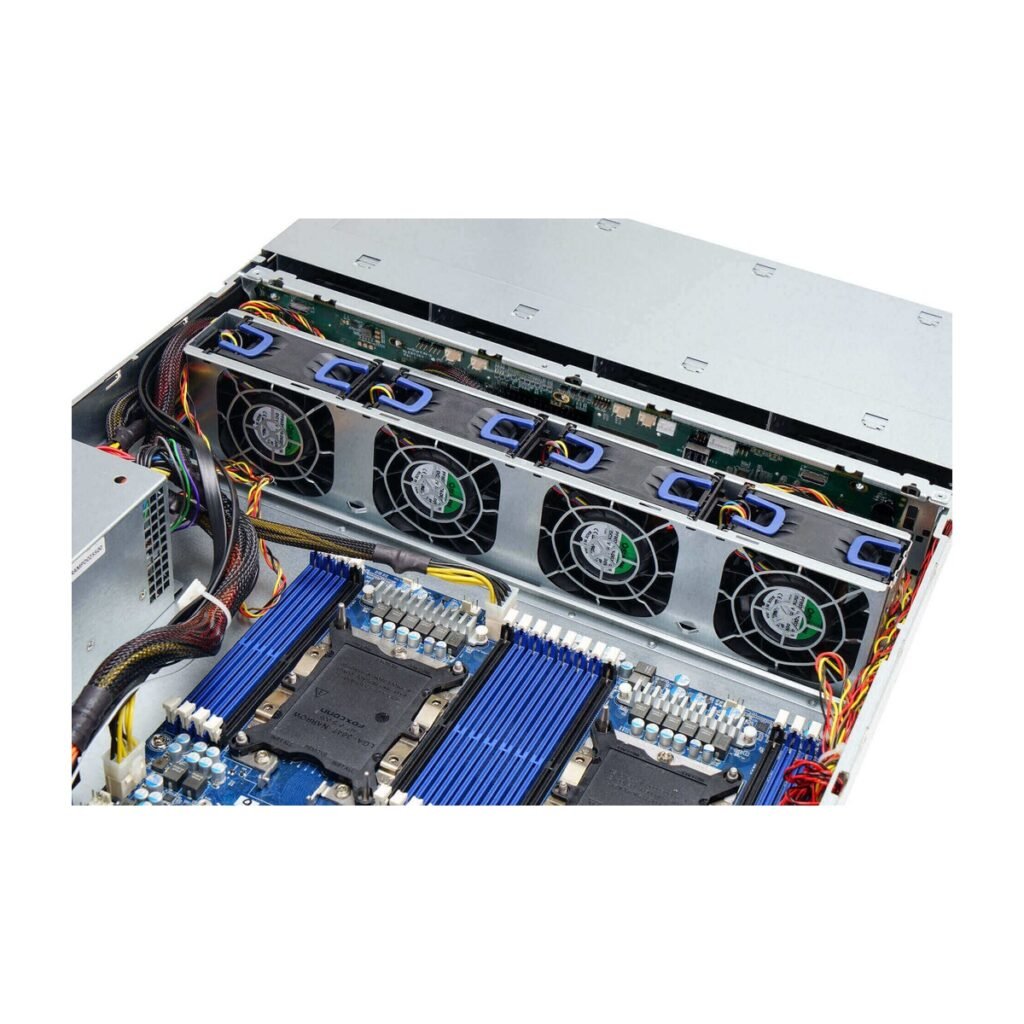

60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, 12000RPM Modular design with anti-vibration, 80 x 38mm PWM hot-swap fans x 4
|
| 12Gbps Expander Module |
Cascade x 1), Supports LSI 3 x 36R expander
|
| Expansion Slots |
Low-profile PCIe slots x 7
|
| Material |
Material: SGCC, Thickness: 1.0mm
|
| Rail Kit |
Supports 28" tool-less ball-bearing slide rails
|
| Weight |
Gross weight: 16.51kg, Net weight: 13.09kg
|
| Shipping Information |
20': 160pcs, 40' HQ: 414pcs, 40': 368pcs, Single packing with pallets:
|
| Backplane Type-1 Specs |
Mini-SAS HD Slimline backplane
|
| HDD / SSD Interface |
SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
|
| Detailinformationen |

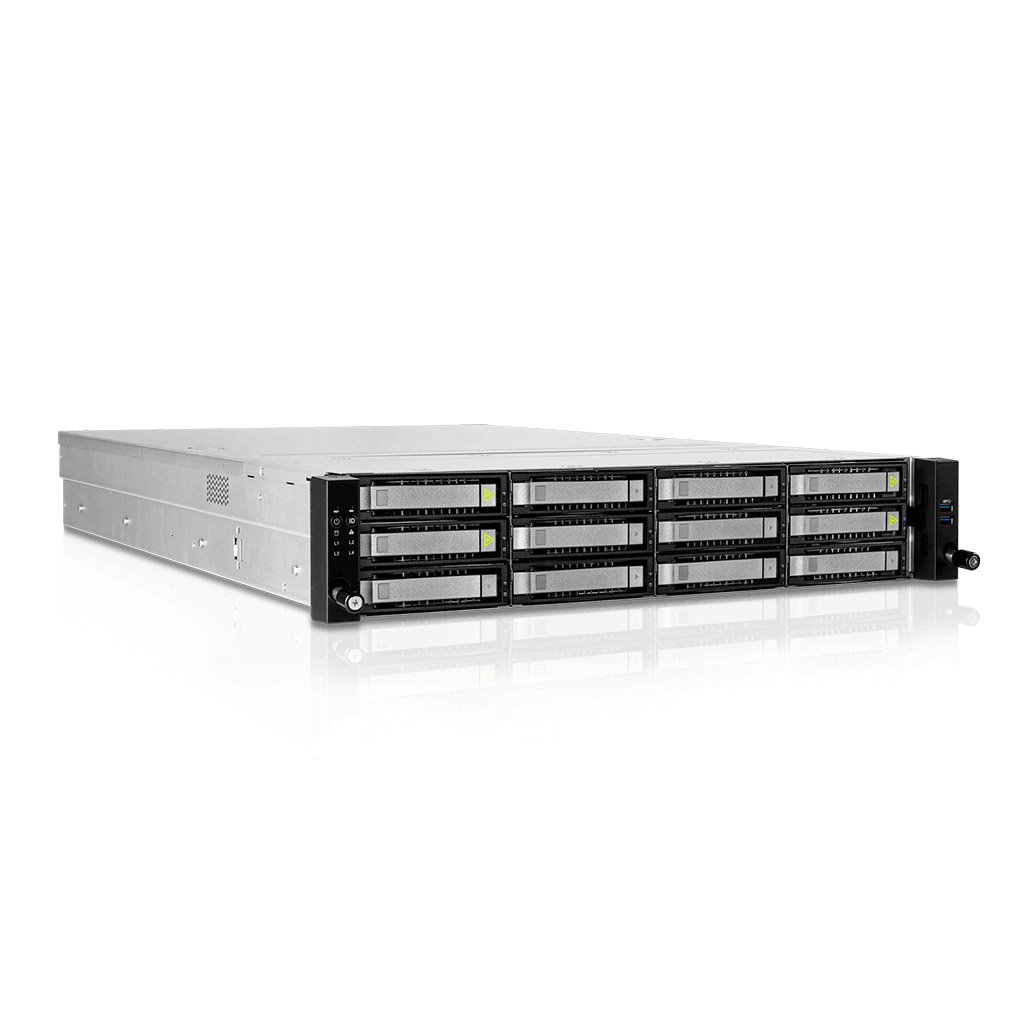

2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis, 2.5"/3.5" hot-swap trays x 12 (optional NVMe trays x 4, 80 Plus® Platinum CRPS (optional), and disk support, Backplanes with Mini-SAS HD, distinguishes U.2 NVMe SSDs), End-to-end 12Gbps SAS host, High-speed cooling fans for excellent thermal performance, Highly efficient 1600W, Intel® Xeon Scalable family compliant, or Slimline connectors (compatible with PCIe 4.0), Supports tool-less ball-bearing slide rails, Tool-less design for 2.5"/3.5" HDD tray, expander, OCuLink
|
