IW-RS224-E3
2U PCIe Gen5 NVMe solution storage server Compact bay design 80 Plus® Platinum CRPS
Rackmount Chassis
2U Rackmount Chassis

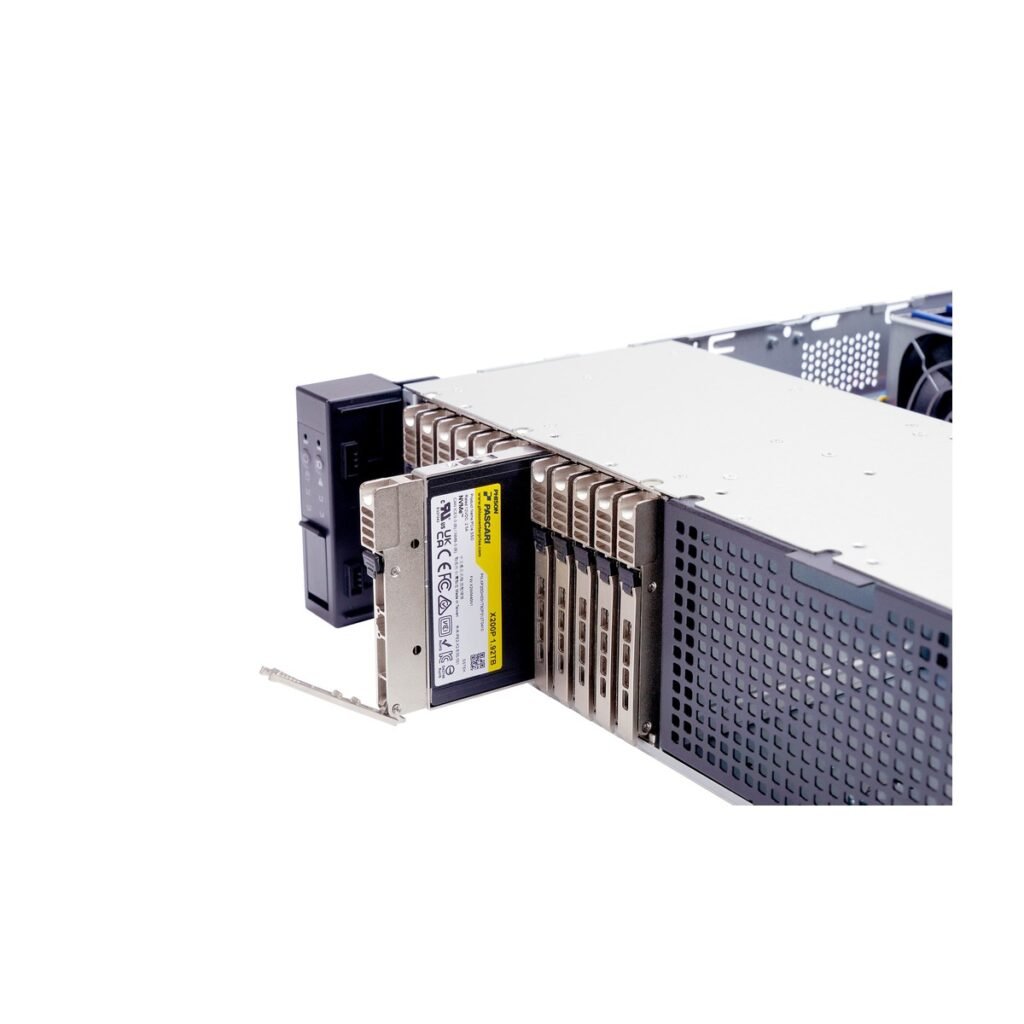

• Rear 2.5" 7mm hot-swap trays x 2 (supports SATA drives)
2
HDD LED ID LED LAN1/LAN2/LAN3/LAN4 LED Power LED system LED
Low-profile PCIe slots x 8
Supports 28" tool-less ball-bearing slide rails
845 x 595 x 223mm
20': 160pcs 40' HQ: 414pcs 40': 368pcs Single packing with pallets:
Zur Erstellung einer Wunschliste bitte einloggen.
Dieser Artikel ist in diesen
Kategorien gelistet:
Detail-Informationen_
| Maße | 662,5 × 448 × 87,5 cm |
|---|---|
| Power Supply | |
| Product Dimensions | |
| Packing Dimensions | |
| Cases Size | |
| Chassis Form Factor | Rackmount Chassis |
| External Drive Bays | |
| MB Form Factor | |
| Chassis Indicator | HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED |
| Chassis Front Control | ID SW, NMI, Power on/off, system reset, USB 3.0 x 2 |
| Serie | |
| SUB - Serie | NVME Storage Server |
| Industry Standard | |
| Internal or Rear Drive Bays | • Rear 2.5" 7mm hot-swap trays x 2 (supports SATA drives) |
| Internal Drive Bays | |
| Indicators | HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED |
| Front Control Panel | |
| Backplane Type-1 | |
| Cooling Fans | 17000RPM, 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, Pre-installed 80 x 38 mm PWM fans x 4 |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Weight | |
| Shipping Information | 20': 160pcs, 40' HQ: 414pcs, 40': 368pcs, Single packing with pallets: |
| Backplane Type-1 Specs | PCIe Gen5 2U 12bays backplane (pre-installed x 2pcs with 12-drive capacity of each) PCIe Gen5 32GT/s |
| HDD / SSD Interface | E3.S 7.5mm NVMe x 12 |
| Detailinformationen | 2U PCIe Gen5 NVMe solution storage server Compact bay design, 80 Plus® Platinum CRPS |
Packaging_
Product Dimensions HWD with Frontpanel
Package dimensions
