- Intel® Xeon Scalable & AMD EPYC family compliant

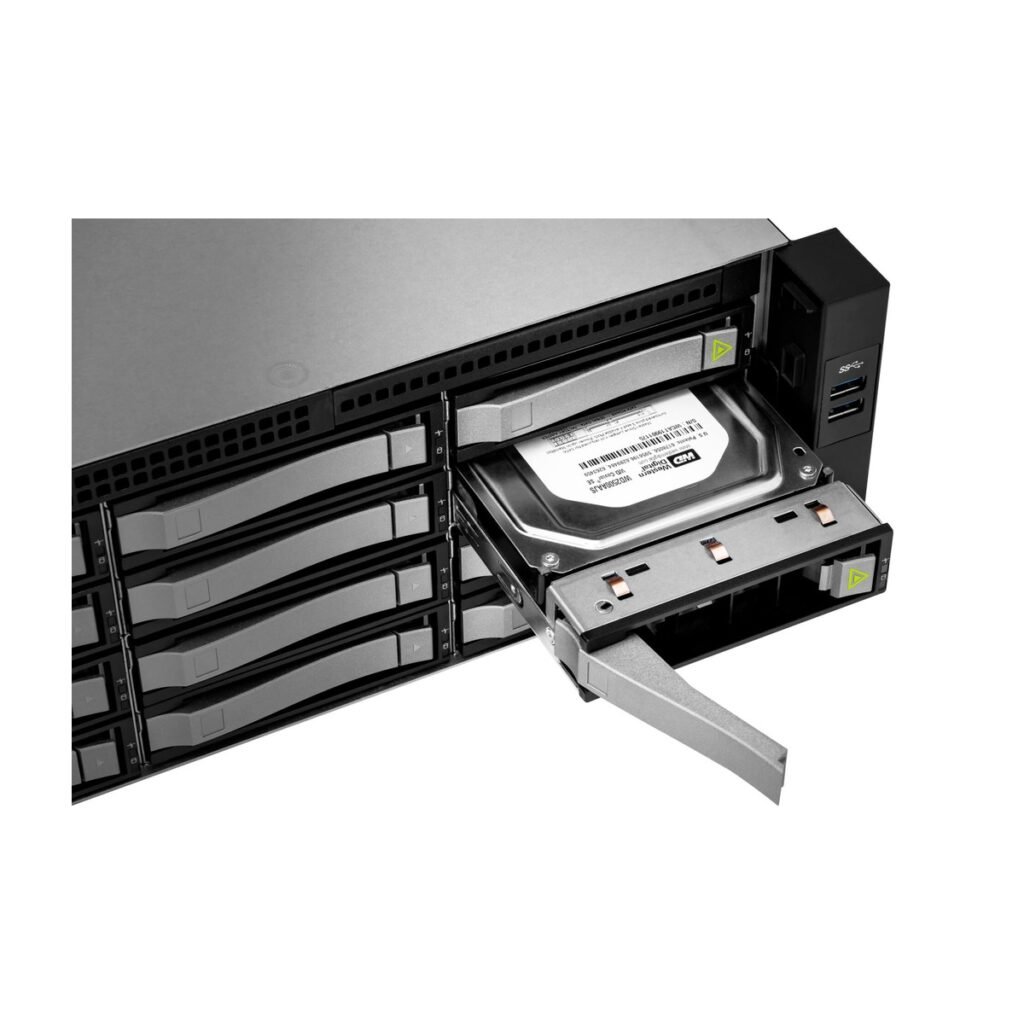

- Supports 2.5″/3.5″ hot-swap HDD trays x 16
- Optional NVMe trays x 8, green trays distinguish U.2 NVMe SSDs
- Rear drive bays support 2 x 2.5″ SAS/SATA SSDs for system disks
- Backplanes with Mini-SAS HD, OCuLink or Slimline connectors (compatible with PCIe 4.0)
- End-to-end 12Gbps SAS host, expander and disk support
- Internal disk brackets for 3 x 2.5″ SAS/SATA SSDs (one is optional), 1 x slim ODD
- Supports full-height PCle slots x 7
- Highly efficient 550W/800W/1200W/1600W, 80 Plus® Platinum CRPS (optional)
- High-speed cooling fans for excellent thermal performance

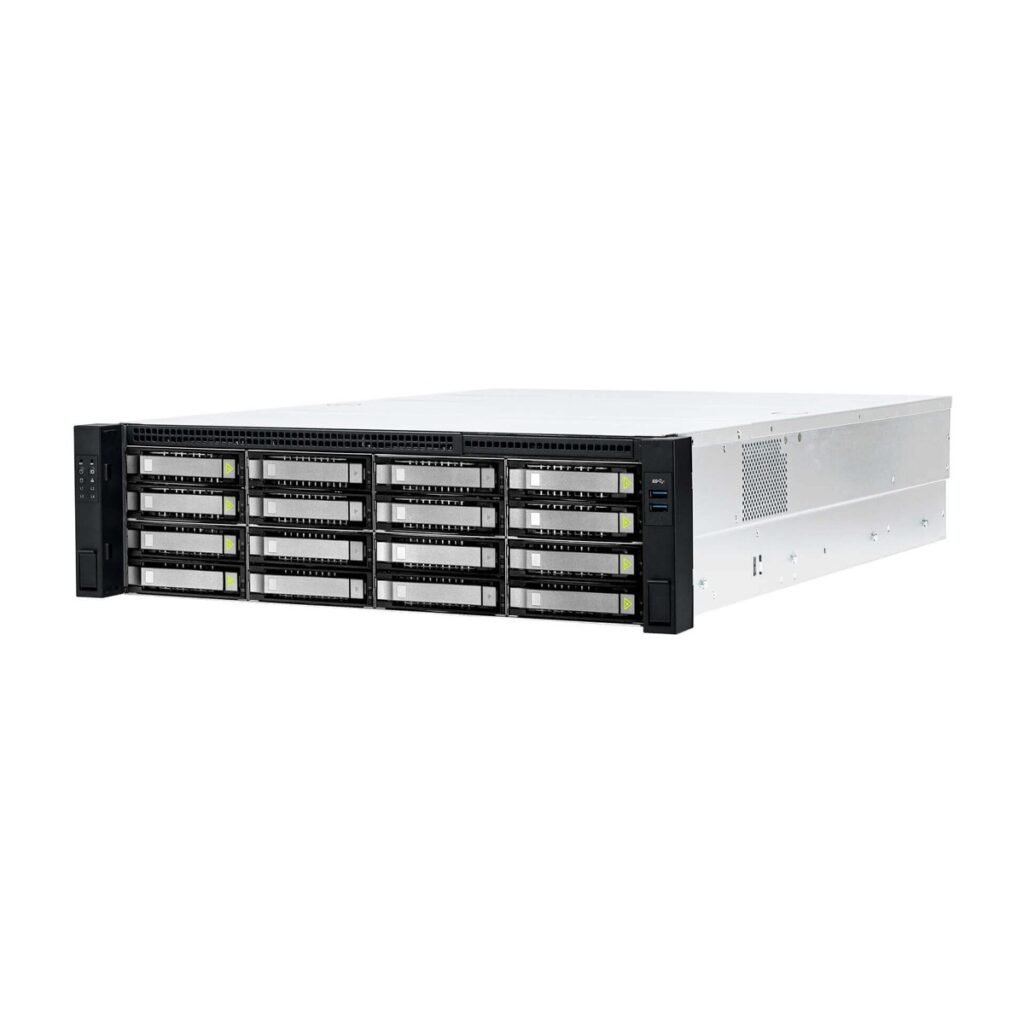

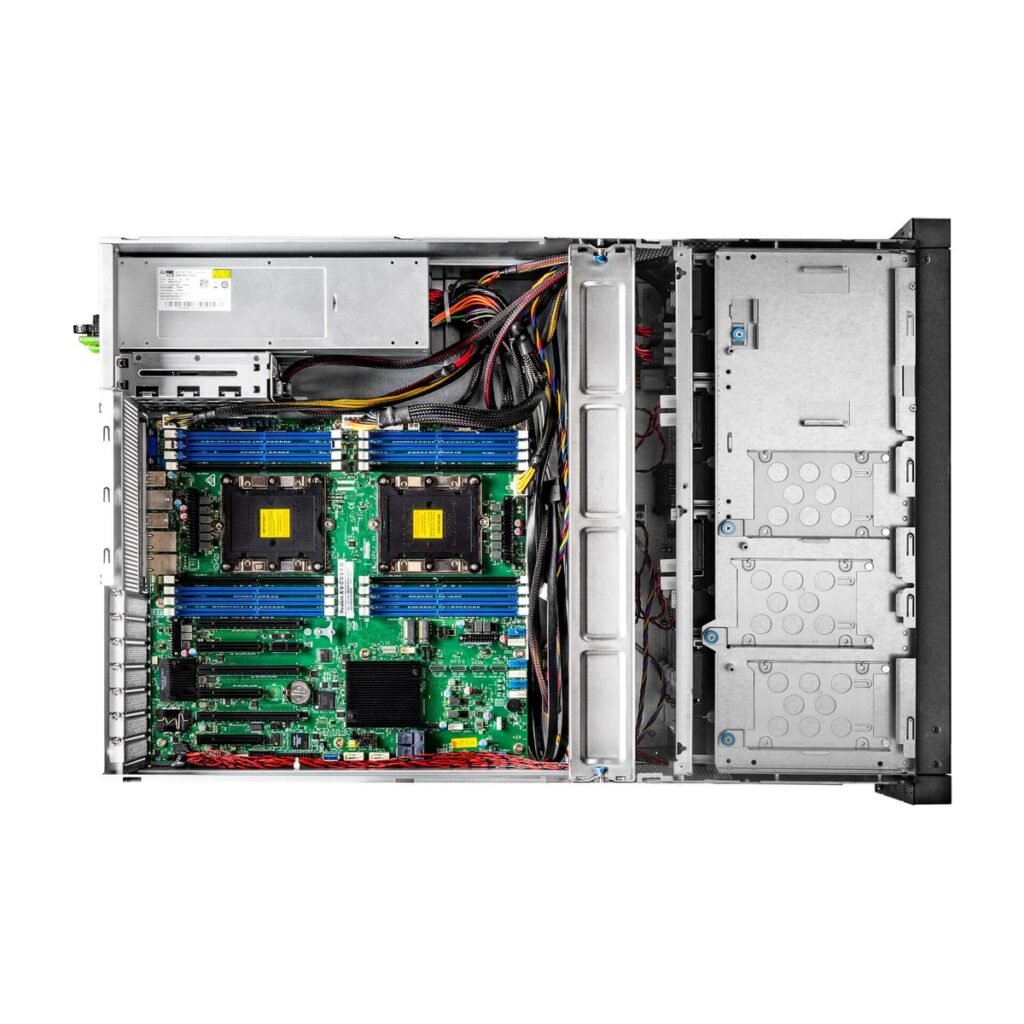

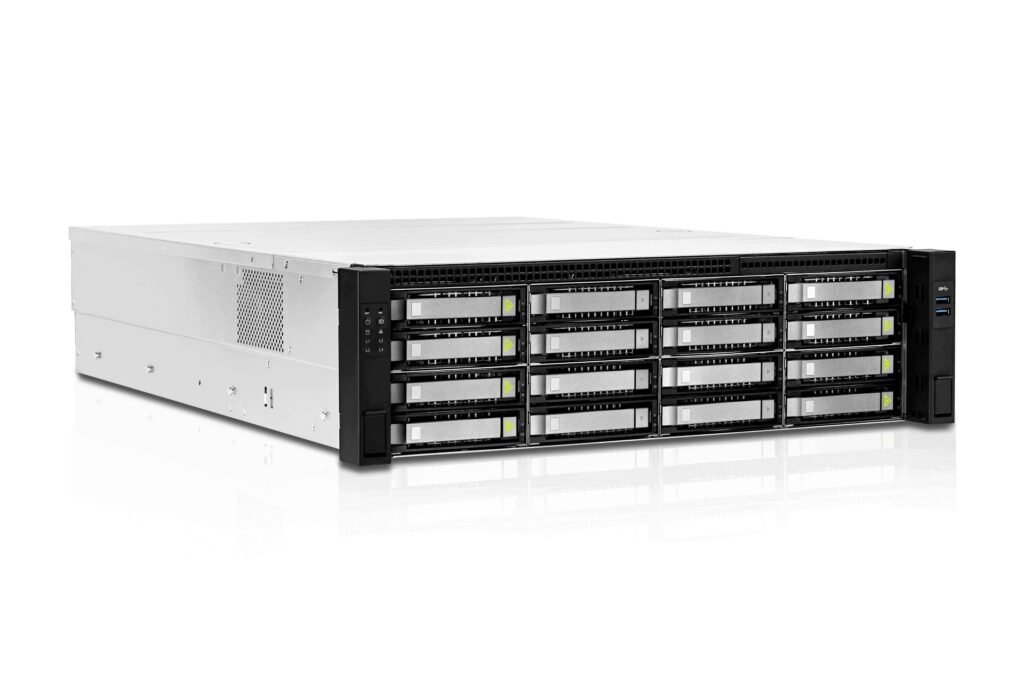

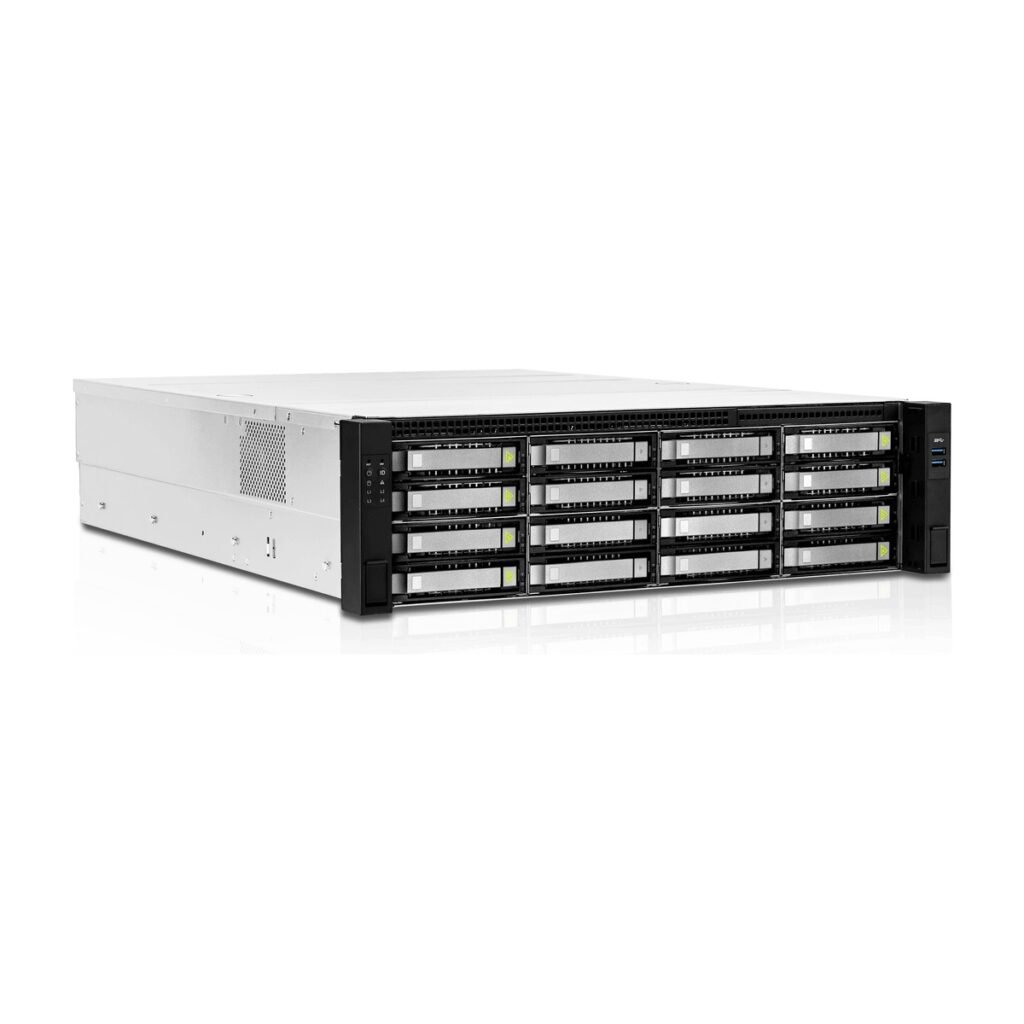

IW-RS316-07
3U NVMe Hybrid Storage Server
This article is listed in these categories:
Detailed information
| Detailinformationen | 1 x slim ODD, 80 Plus® Platinum CRPS (optional), Backplanes with Mini-SAS HD, End-to-end 12Gbps SAS host, expander and disk support, green trays distinguish U.2 NVMe SSDs, High-speed cooling fans for excellent thermal performance, Highly efficient 550W/800W/1200W/1600W, Intel® Xeon Scalable AMD EPYC family compliant, Internal disk brackets for 3 x 2.5" SAS/SATA SSDs (one is optional), OCuLink or Slimline connectors (compatible with PCIe 4.0), Optional NVMe trays x 8, Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks, Supports 2.5"/3.5" hot-swap HDD trays x 16, Supports full-height PCle slots x 7 |
|---|---|
| Serie | |
| Chassis Form Factor | Rackmount Chassis |
| Industry Standard | |
| Cases Size | |
| MB Form Factor | |
| Internal or Rear Drive Bays | 2.5" SSDs x 3 (one for option) and slim ODD x 1 |
| External Drive Bays | |
| Internal Drive Bays | |
| Power Supply | Form Factor: 80 Plus Platinum CRPS, Watt: 550W/800W/1200W/1600W |
| Indicators | HDD LED, ID LED, LAN1/LAN2/LAN3/LAN4 LED, Power LED, system LED |
| Front Control Panel | |
| Cooling Fans | 12000RPM, 60 x 25mm PWM rear fan x 2 (optional), 80 x 25mm PWM front fan x 1, Modular design with anti-vibration, 80 x 38mm PWM hot-swap fans x 4 |
| Expansion Slots | |
| Material | |
| Rail Kit | |
| Product Dimensions | |
| Packing Dimensions | |
| Weight | |
| Shipping Information | 20': 160pcs, 40' HQ: 414pcs, 40': 368pcs, Single packing with pallets: |
